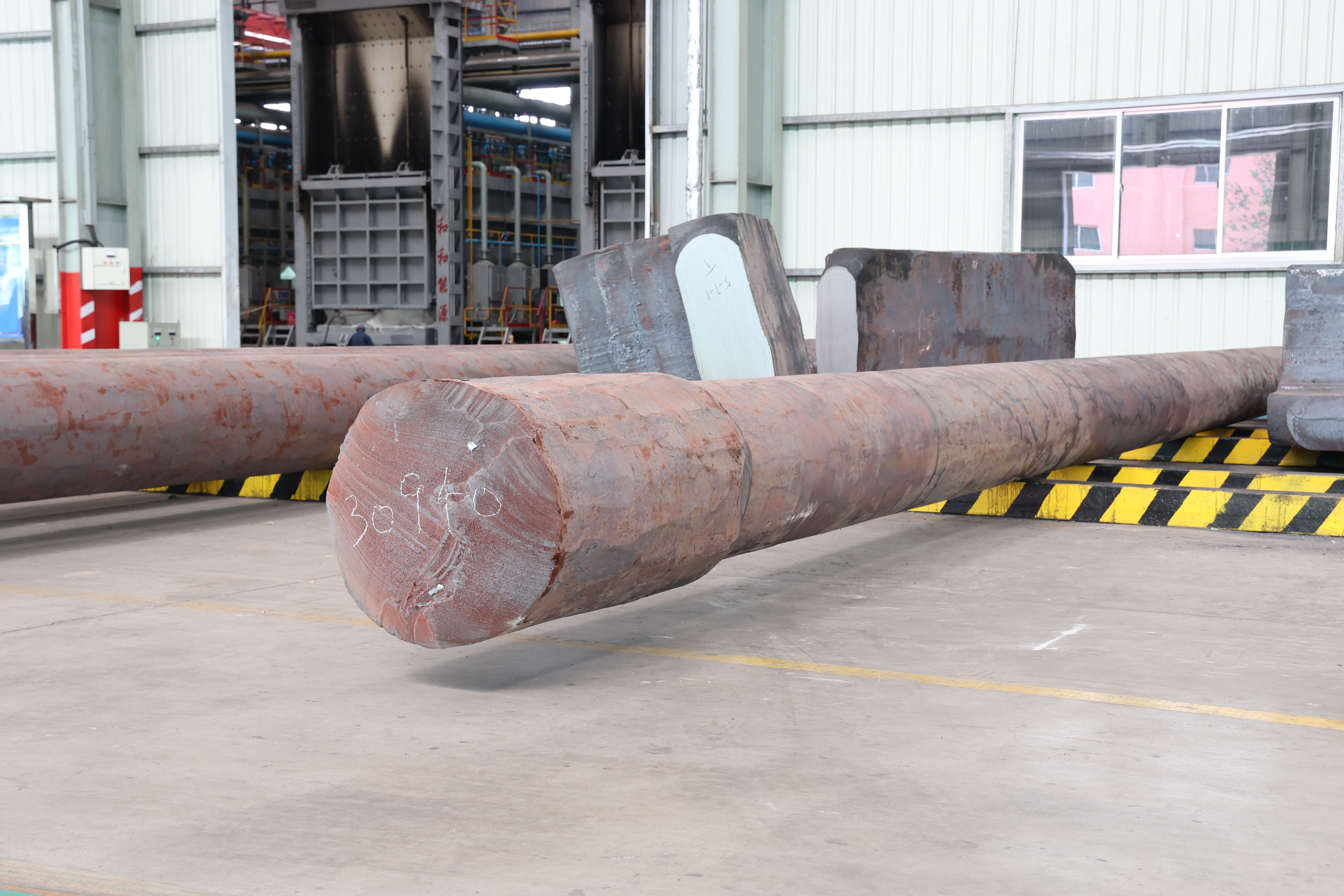

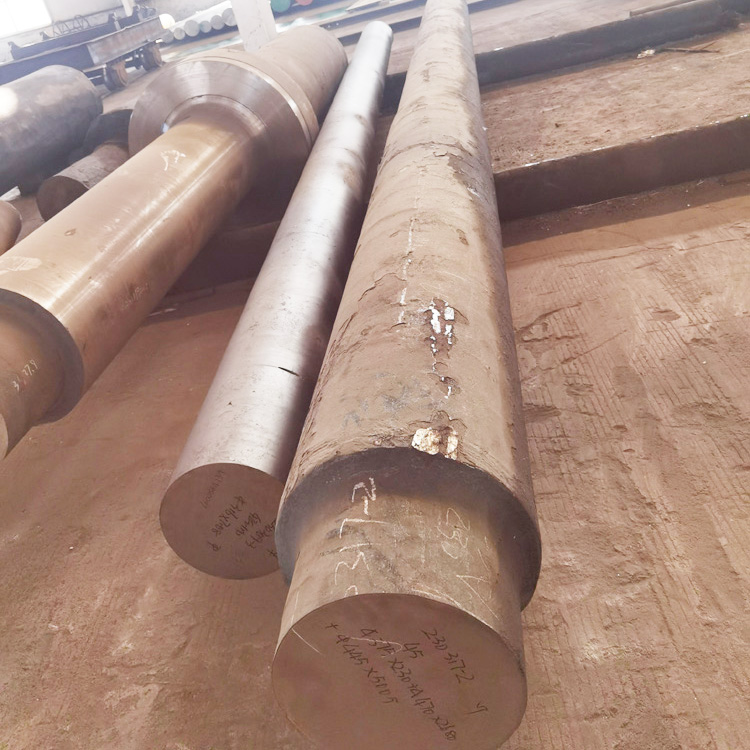

The marine stepped shaft serves as the critical rotational backbone for demanding offshore engineering and vessel propulsion systems. Engineered to endure extreme torsional stress, this specialized mechanical component features precisely machined multi-diameter shoulders along its primary axis. These meticulously contoured steps provide exact axial positioning for heavy-duty gears, thrust bearings, and rigid couplings. When handling the component, the cold, dense metallic weight and the ultra-smooth, precision-ground finish immediately reflect a rigorous manufacturing standard designed to minimize friction, reduce wear, and facilitate seamless mechanical integration.
Forged from certified marine-grade steel, each shaft undergoes a comprehensive, strictly controlled machining and anti-corrosion treatment process. The resulting structural integrity exhibits a protective surface sheen that actively repels moisture and resists degradation. Built to operate continuously in harsh environments characterized by high salt spray, heavy humidity, and aggressive chemical exposure, these components absorb and distribute alternating heavy load impacts. They ensure the long-term, stable operation of ship power systems, meeting the stringent safety and reliability mandates of global offshore projects.
Our manufacturing protocol adheres strictly to international classification society standards, ensuring every dimensional tolerance and material property aligns with your exact engineering requirements. The table below outlines the precise technical parameters, material options, and processing capabilities available for your custom marine shaft projects.
| Item | Details |
| Certified Standards | CCS, ABS, DNV, LR, BV, ISO, GB |
| Material Options | 45#, 40Cr, 42CrMo, 20CrMnTi, Marine Stainless Steel, Customized alloy |
| Diameter Range | Φ10mm – Φ800mm |
| Length Range | Up to 8000mm, fully drawing custom |
| Manufacturing Process | Forging → Rough Turning → Heat Treatment → Finish Machining → Precision Grinding → Anti-corrosion Treatment → NDT Inspection |
| Heat Treatment | Quenching & Tempering, Normalizing, Surface Hardening |
| Custom Machining | Keyways, Splines, Threads, Flanges, Special step structure |
| Tolerance Grade | ISO IT7 – IT10 |
Continuous Grain Flow Manufacturing: Utilizing advanced stepped forging techniques, we maintain a continuous internal metal grain flow that mirrors the shaft's external contours. This refined microstructure significantly elevates structural strength, bending resistance, and fatigue resistance under continuous heavy marine loads.
Cost-Effective Near-Net Shape Forging: By applying near-net shape forging methods, the raw steel is pressed directly into a form closely approximating the final stepped dimensions. This drastically reduces raw material waste and minimizes rough turning time, delivering substantial cost efficiencies for your procurement cycle.
Sound-Centered Structural Integrity: We guarantee 100% sound-centered forgings, completely eliminating internal voids, porosity, or microscopic defects at the source. This absolute internal density ensures unwavering reliability when the shaft absorbs extreme, alternating torsional impacts from turbulent ocean swells.
Exceptional Marine Corrosion Resistance: Each shaft undergoes specialized surface treatments, resulting in a resilient, protective barrier that withstands prolonged exposure to aggressive salt spray and corrosive seawater environments.
Ultra-High Concentricity & Alignment: Precision grinding achieves ultra-high concentricity and exceptionally low radial runout. The accurate shaft shoulder positioning facilitates straightforward on-board installation, perfect alignment, and smooth, low-vibration rotation at high speeds.
Stringent Non-Destructive Testing: Every unit is subjected to rigorous, full-scale quality inspections, including 100% NDT (Non-Destructive Testing) utilizing ultrasonic and magnetic particle methods to verify absolute physical flawlessness.
Serving as the critical link in intermediate and stern shaft matching assemblies, transmitting immense rotational force directly from the engine room to the propellers.
Providing exact axial positioning for main engines and supporting motor units, ensuring gears mesh with zero deviation under heavy torque.
Acting as the primary load-bearing axis for anchor winches, heavy-lift cranes, windlasses, and other essential marine hoisting equipment exposed directly to the elements.
Driving large-scale marine pumps, industrial compressors, and complex valve drive systems that require continuous, vibration-free operation.
Supporting the rigorous demands of offshore wind power installations, drilling rigs, and other ocean engineering heavy-duty equipment facing severe environmental stress.
Custom-engineered to fit the unique architectural requirements of inland cargo ships, ocean-going vessels, specialized engineering ships, and heavy workboats.
We back every machined component with a comprehensive suite of documentation, providing complete factory test reports, verifiable material certificates, detailed heat treatment records, and third-party ship classification inspection certificates. Beyond documentation, our operational model is built around ultimate flexibility, rapid response, and unwavering support.
We support a strict No Minimum Order Quantity (No MOQ) policy. Whether your operation requires a single prototype for initial vessel testing, an urgent replacement shaft for emergency dry-dock maintenance, or a large-scale batch for a new shipbuilding project, we deliver highly flexible, customized manufacturing services tailored to your exact timeline.
To combat unpredictable project delays, we maintain a vast, ready-to-forge inventory of marine-grade alloy steels and stainless steel billets. Combined with our fully integrated, one-stop in-house machining facilities, this allows us to drastically compress production timelines. We offer exceptionally short lead times for both sampling and mass production, supported by professional seaworthy export packaging and a globally stable delivery network.
Every marine stepped shaft comes with a definitive, long-term product warranty. Furthermore, our dedicated technical engineering team provides continuous support throughout the entire project lifecycle. From initial blueprint deepening and tolerance optimization to final on-board installation guidance, we ensure a seamless, worry-free integration process for your engineering teams.
