close
Choose Your Site
Global
Social Media
Views: 0 Author: Site Editor Publish Time: 2026-05-24 Origin: Site
Industrial forged steel is cleaned for production control, not for appearance. A buyer may need to verify incoming quality, a machinist may need a clean surface before cutting, and a heat-treatment team may need to remove oil or oxide before the next furnace cycle. If the wrong method is used, the result can be flash rust, dimensional loss, hidden cracks, poor NDT results, or rejected material.
This guide focuses on Forged Steel Bars, Forged Die Steel, forged blocks, shafts, rings, and other industrial forgings. The goal is to remove rust, oxide scale, oil, shop residue, or shipping contamination without damaging machining allowance, heat numbers, dimensional tolerance, or inspection reliability.
The first step is to define what is actually on the material. Red-brown rust is active corrosion, usually caused by moisture during storage, transport, or poor packaging. Black oxide scale forms when hot forged steel reacts with oxygen during forging, annealing, normalizing, or heat treatment.
Oil and grease require another approach. Cutting oil, coolant residue, transport grease, and anti-rust oil may look dirty, but they may also protect the material from corrosion. Removing them too early can expose bare carbon steel or alloy steel to humid air.
A simple shop check helps avoid over-cleaning. Wipe the surface with a clean white cloth, inspect the residue, then test a small area with light brushing. Rust releases brown powder, oil leaves a dark film, and hard scale remains bonded unless mechanical or chemical force is applied.
Not every dark mark should be cleaned away. Cracks, laps, folds, seams, pits, dents, and inclusions are quality issues, not surface dirt. On Forged Steel Bars and die blocks, aggressive grinding can remove evidence before quality control evaluates it.
Cleaning should reveal defects, not hide them. If a line follows the forging direction, repeats along the bar, or opens under light grinding, it may require formal inspection. Visual inspection should come before heavy polishing, especially when supplier claims, customer approvals, or MTC traceability are involved.
The best method depends on what happens next. Material going to CNC machining needs a surface free from grit and heavy oxide, but it does not always need a bright finish. Material going to Magnetic Particle Inspection must be clean enough for discontinuities to show clearly.
Heat treatment, coating, nitriding, and storage each require different surface preparation. A forged block going into heat treatment should be free from oil, moisture, and loose scale. A finished bar going into export packaging needs corrosion prevention more than cosmetic cleaning.

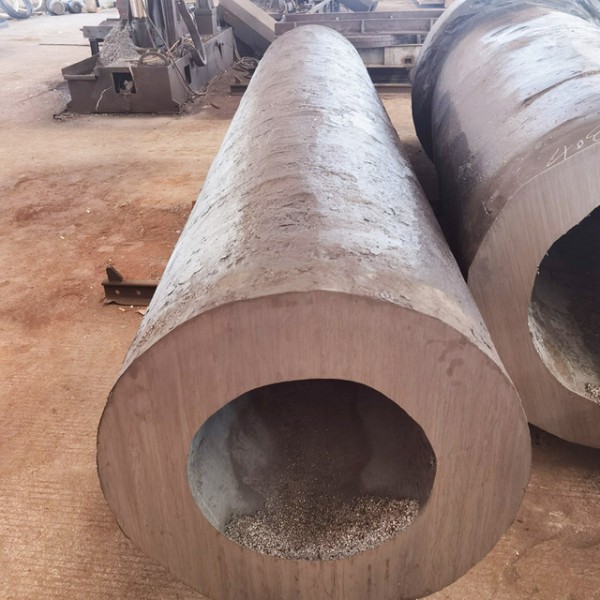

Mechanical brushing is suitable for loose scale on raw forgings, black forged bars, shafts, rings, and blocks. Hand wire brushes, scrapers, rotary brushes, and abrasive pads can remove weakly attached oxide without changing the whole surface. This is often the first step before deeper processing.
The risk is uneven metal removal. A hard wire wheel can round corners, smear residue, or scratch areas that later need accurate measurement. On precision stock, keep brushing local and light, then check the size before escalating.

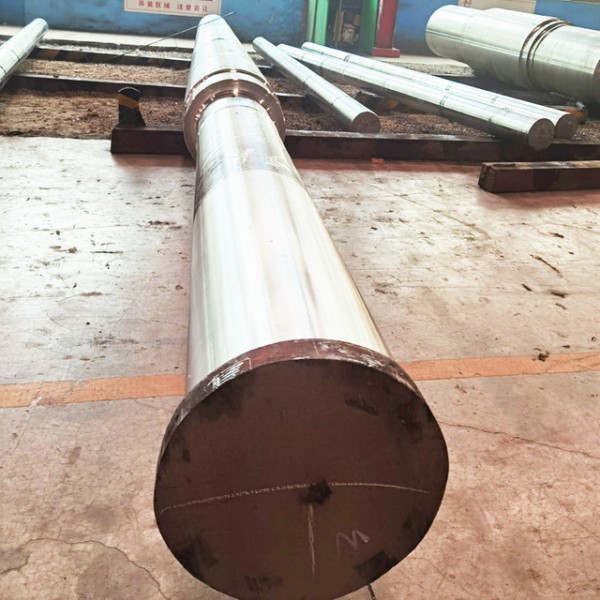

Grinding, turning, or peeling is used when oxide scale, rust pits, or surface decarburization must be removed before machining. This is common for Forged Steel Bars supplied in black condition, where the surface is not intended to be the final working dimension. The key question is whether enough stock remains for the required machining allowance.
Peeling creates a cleaner and more uniform surface on round bars than random grinding. Grinding is better for local defects or flat areas, but it can introduce heat marks if used too aggressively. Any removal process should be planned around final diameter, flatness, straightness, and tolerance requirements.
Shot blasting is widely used for industrial forged steel because it handles batches efficiently and removes scale from complex shapes. It is suitable for bars, rings, shafts, blocks, and large forgings before inspection, machining, painting, or coating. Media size, hardness, pressure, and exposure time should match the grade and surface requirement.
Blasting is not automatically harmless. It changes surface roughness, may peen the outer layer, and can leave media trapped in corners or holes. After blasting, inspect the surface under good lighting because a uniform rough profile can make fine cracks harder to see.
Pickling removes oxide scale through chemical reaction, usually with controlled acid solutions. It can be effective when mechanical access is difficult or batch cleaning is needed before further processing. For forged steel, the process must be controlled by acid concentration, temperature, immersion time, and rinse quality.
Poor pickling causes problems. Over-pickling can etch the base metal, while acid left in pits or stamped marks can trigger flash rust. Neutralization, clean-water rinsing, drying, and rust-preventive oiling are part of the process, not optional aftersteps.
Method | Best Use | Main Risk |
Wire brushing | Loose scale on raw forgings | Scratches or uneven cleaning |
Grinding | Local defects and heavy scale | Dimensional loss |
Peeling/turning | Round bars with machining allowance | Excess stock removal |
Shot blasting | Batch scale removal | Roughness change or hidden defects |
Pickling | Chemical oxide removal | Acid residue and over-etching |
Light surface rust is common after storage, handling, or short exposure to humid air. If the oxidation is thin and powdery, wipe the bar first, then use a fine abrasive pad, light wire brushing, or an industrial rust remover. The goal is to clean the affected area without removing unnecessary base metal.
After cleaning, dry the surface and apply rust-preventive oil. Bare forged steel should not be left exposed on a rack while waiting for machining. Even a clean warehouse can have enough humidity to restart oxidation overnight.
Heavy rust requires a quality decision, not just a cleaning decision. Deep pitting can reduce usable diameter, affect sealing surfaces, or create stress concentration points. In shafts, gears, die blocks, and fatigue-loaded components, pits can become early crack initiation sites.
Measure affected areas with calipers or a depth gauge before grinding. Compare the remaining size with the drawing, purchase order, and machining allowance. If the bar is already close to final dimension, cleaning may not restore acceptability.
If a shipment arrives with corrosion, document it before altering the surface. Photograph the bundle, labels, heat number, packing condition, moisture marks, and rust pattern. Record whether rust is local, widespread, under wrapping, near strapping, or concentrated where water collected.
This protects both buyer and supplier. Once forged steel is ground, polished, or blasted, it becomes harder to prove whether corrosion occurred before delivery or during storage. For high-value Forged Steel Bars, documentation should be part of incoming inspection.
Forged Die Steel should be cleaned before milling, drilling, grinding, EDM, or CNC machining. Oil film, scale, grit, and corrosion can shorten tool life, affect clamping, and interfere with accurate measurement. A clean surface also helps the machinist see cracks, dents, and hard spots before cutting begins.
Common grades such as H13, D2, P20, 4140, and 4340 may arrive as forged blocks, pre-machined plates, or saw-cut stock. Cleaning should remove contamination while preserving reference faces and machining allowance. Random grinding on a die block can create problems when flatness and parallelism are checked.
Heat treatment requires clean material. Oil, grease, water, and loose oxide can affect furnace atmosphere, surface quality, and hardness uniformity. Moisture trapped in holes or rough scale can also create staining or localized oxidation.
For parts going to quenching and tempering, normalize cleaning procedures before loading the furnace. Remove heavy oil with suitable degreasing, eliminate loose scale, and make sure the forged steel is dry. Consistency matters more than achieving a bright finish.
Nitriding, polishing, and texturing are sensitive to surface condition. Residual oil, oxide, abrasive dust, or chemical residue can cause uneven nitrided layers or visible finishing defects. For tooling surfaces, scratches left during cleaning may show after polishing.
Use controlled cleaning before these finishing steps. Solvent wiping, fine abrasive preparation, and clean handling are safer than aggressive blasting unless the process specification allows it. Gloves should be used after final cleaning to prevent fingerprints from becoming corrosion marks.
Visual inspection needs a surface clean enough to separate defects from contamination. Dirt, rust, and loose scale can hide cracks, seams, laps, handling dents, and corrosion pits. Strong lighting, clean cloth wiping, and local brushing are often enough for a first check.
Do not chase a polished surface before inspection. Excessive grinding can make a discontinuity look smaller or remove the evidence needed for evaluation. For forged steel, inspection quality is more important than brightness.
Magnetic Particle Inspection is used on ferromagnetic steels to find surface and near-surface discontinuities. Oil films, heavy rust, loose scale, and blasting residue can interfere with particle movement and indication clarity. The surface must be clean, but it should not be altered so heavily that flaws are smeared or closed.
A practical approach is to remove loose contamination, degrease the area, and avoid coarse grinding unless approved. If grinding is required, inspect again after the surface is prepared. For forged steel suppliers, this sequence also protects audit records and customer acceptance.
Ultrasonic Testing checks internal soundness in bars, blocks, and large forgings. The probe needs good contact, so heavy scale, deep rust, rough blasting, and uneven surfaces can reduce coupling quality. A smoother local scan surface may be required for reliable readings.
Cleaning for UT is different from cleaning for appearance. The surface should allow stable probe movement and consistent couplant contact. If a forged block has rough black scale, machining or local grinding may be needed before testing.
After cleaning, rust preventive oil creates a temporary barrier against moisture and fingerprints. It is commonly used for warehouse storage, export shipments, and semi-finished forged steel awaiting machining. The film should be continuous but not so excessive that it traps dirt or creates handling hazards.
Choose the oil based on storage duration and next process. A short-term shop oil may be enough for indoor storage, while export material needs stronger corrosion protection. Before heat treatment, coating, or nitriding, the protective film must be removed properly.
VCI paper, VCI film, sealed plastic wrapping, desiccants, and humidity indicators are useful for long-term storage and sea freight. These materials help reduce corrosion risk when Forged Steel Bars or die blocks travel through humid environments. Packaging should protect the steel without hiding labels, heat numbers, or inspection marks.
Bundles should be dry before wrapping. Sealing moisture inside the package can make corrosion worse. For export, combine clean surfaces, rust preventive oil, VCI materials, and proper pallet or crate design.
Storage conditions decide whether cleaning work lasts. Keep material off concrete floors, use spacers between layers, avoid direct water contact, and prevent condensation from roof leaks or temperature swings. Inspect bundles after unloading, especially if the shipment crossed marine or humid regions.
Good handling also protects traceability. Heat numbers, tags, paint marks, and labels should remain readable after cleaning and oiling. Losing identification can create more cost than surface rust.
The most expensive mistake is cleaning beyond the required surface condition. Heavy grinding can reduce diameter, affect flatness, or remove machining allowance. A cleaner-looking surface is not useful if the part no longer meets tolerance.
Always check the drawing, purchase order, and final process before aggressive cleaning. If material is supplied in black condition, some scale may be acceptable until planned machining.
Shot blasting, polishing, or grinding can hide fine cracks, laps, and seams. This is especially risky before Magnetic Particle Inspection or supplier review. Cleaning should make the defect easier to see, not easier to miss.
When in doubt, clean locally and inspect before full-surface treatment. Keep photos and notes during incoming inspection.
Chemical cleaning without neutralization invites flash rust. Pickling acids and mild acids can remain in pits, corners, stamped marks, and rough forged textures. Rinsing alone may not be enough if residue stays trapped.
Neutralize, rinse, dry, and oil in sequence. Delays between these steps are a common cause of rust returning after cleaning.
Clean forged steel can corrode faster than dirty stock if protection is removed and not replaced. Leaving bars bare in humid air, stacking wet material, or wrapping damp stock will undo the cleaning work. Storage should be treated as the final step of the cleaning process.
Cleaning industrial forged steel is part of quality control, not cosmetic maintenance. The right method depends on the surface condition and the next process: machining, heat treatment, NDT, nitriding, storage, or shipment. Rust, oxide scale, oil, and defects require different responses.
Use brushing for loose scale, grinding or peeling when stock removal is planned, pickling for controlled oxide removal, and shot blasting for batch surface preparation. For Forged Steel Bars and Forged Die Steel, protect dimensional tolerance, machining allowance, heat numbers, and inspection visibility.
A: Remove oil, loose scale, rust, and grit first. Use wiping, brushing, blasting, or controlled grinding depending on the surface condition and machining allowance.
A: Yes. Light rust can be brushed or wiped with rust preventive oil, while heavy rust should be checked for pitting, dimensional loss, and acceptance issues.
A: Loose scale can be wire brushed, while heavier oxide may require grinding, peeling, shot blasting, or pickling. The right method depends on the next process.
A: Yes. Oil, moisture, loose scale, and shop residue should be removed before heat treatment to reduce surface defects, staining, and inconsistent results.
A: Clean Forged Die Steel with controlled methods that remove oil, rust, and scale without damaging reference faces, machining allowance, or surfaces needed for polishing or nitriding.
A: Dry it fully, then apply rust preventive oil, VCI paper, sealed wrapping, or desiccants for storage, shipment, or export packaging.
