close
Choose Your Site
Global
Social Media
Views: 0 Author: Site Editor Publish Time: 2026-05-31 Origin: Site
Forged steel turns black because the hot metal surface reacts with oxygen during heating and shaping. At forging temperatures, iron at the surface forms dark oxide layers, mainly magnetite and mill scale, instead of staying bright silver. This dark skin is only a surface condition; the steel underneath can still be exposed by grinding, polishing, or machining.
Most readers asking this question are not only curious about color. They want to know whether the black layer is rust, whether it protects the steel, and whether it should be removed before welding, coating, machining, or installation. Those concerns matter because the same black surface can be acceptable on decorative forged parts but unsuitable for precision components.
This guide explains why forged steel becomes black, what mill scale does, when the surface helps, and when it becomes a processing problem. For forged steel components, color should always be read as surface evidence, not final proof of performance.
The main reason forged steel turns black is high-temperature oxidation. During forging, steel is heated until it becomes plastic enough to shape under a hammer, press, or die. In that hot state, iron atoms at the surface react rapidly with oxygen in the surrounding air and form iron oxide.
This reaction is much faster at forging heat than at room temperature. A cold steel bar may rust slowly in humid storage, but a hot workpiece can form visible oxide scale within minutes. Furnace atmosphere, heating time, and exposure to open air all influence how much oxide develops before the part is finished.
The black surface is therefore a record of heat exposure. It does not mean the entire material has changed color, and it does not mean the steel grade has become different. The oxide layer forms outside, while internal performance depends on alloy chemistry, forging reduction, and heat treatment.
The dark color usually comes from magnetite, written chemically as Fe₃O₄. This iron oxide has a black to dark gray appearance and commonly forms when steel is heated in oxygen-rich conditions. It is one reason forged steel looks different from freshly machined steel.
Beneath that surface, the metal is still steel. If the oxide layer is removed by grinding, turning, polishing, or heavy machining, the brighter metallic surface appears again. This is why black forged parts may look rough before finishing but become silver-gray after machining.
Magnetite should not be confused with a deep dye or full-depth material change. The color does not penetrate the whole bar or block. It is a surface layer created by heat, oxygen, and time.
The black surface on forged steel is rarely perfectly uniform. Hammering, pressing, reheating, and cooling disturb the oxide layer while new oxide continues to form. Some scale cracks and falls away, while other areas stay attached and darken.
A part that spends longer in the forge may develop heavier scale. Uneven heating may create gray, black, brown, or bluish areas. Forge atmosphere also matters: excess oxygen tends to create more scale, while a more controlled atmosphere may reduce oxidation.
Patchy scale is not automatically a defect, but heavy flaking, deep pitting, or visible cracks should be inspected before further processing.
Cause | Surface Change | Appearance | Effect on Steel Core |
High-temperature oxidation | Iron reacts with oxygen | Dark gray to black oxide | Mostly surface-level |
Repeated reheating | Oxide thickens and reforms | Patchy or layered scale | May increase cleanup needs |
Hammering or pressing | Scale cracks and flakes | Rough texture | Does not prove internal damage |
Cooling conditions | Oxide stabilizes or loosens | Matte or flaky tones | Core properties depend on grade and heat treatment |
A tight black oxide layer can slow direct contact between bare steel and moisture for a short time. If the surface is sealed with oil, wax, or another light protective film, it may resist handling marks and brief indoor exposure better than bare steel. This is one reason some blacksmith products are intentionally left dark and then oiled or waxed.
That protection is limited. Mill scale is not the same as galvanizing, plating, stainless alloying, or a dedicated anti-corrosion coating. Once the layer cracks, chips, or traps moisture beneath it, corrosion can still start.
A black surface may help appearance and short-term storage, but it should not be treated as a corrosion-control system. Outdoor, marine, chemical, or high-humidity environments require a specified protective finish.
Black forged steel can rust when exposed to water, salt, condensation, acidic residues, or poor storage conditions. Red rust forms when iron reacts with oxygen and moisture over time, creating a more porous and flaky corrosion product. Damaged mill scale can even create small crevices where moisture remains trapped.
A black surface can look stable while corrosion begins at edges, scratches, or unsealed areas. Parts stored outdoors, stacked without airflow, or shipped without rust-preventive packaging are especially vulnerable. This matters for bars, rings, flanges, tools, and unfinished forged blanks.
Routine prevention is straightforward. Keep the steel dry, remove loose scale when needed, apply oil or rust inhibitor for storage, and choose the correct finish for the service environment.
The color of forged steel is not a quality certificate. A black surface does not confirm steel grade, hardness, tensile strength, toughness, heat treatment condition, or internal soundness. It only shows that the surface experienced heating and oxidation.
Two parts can look equally black while having very different performance. One may be a properly forged alloy steel component with good grain flow and correct heat treatment. Another may have poor chemistry control, insufficient reduction, surface cracks, or unsuitable hardness.
For critical use, rely on material records and inspection data. Grade, heat number, hardness range, mechanical properties, and non-destructive testing reveal far more than surface color.
Keeping the black layer makes sense when appearance matters more than close dimensional control. Hand-forged handles, rustic brackets, decorative hooks, fireplace tools, and traditional blacksmith products often look better with a dark, textured surface. A stable oxide layer can give the part an authentic forged character.
Sealing is usually the key. Oil, wax, lacquer, or another suitable finish can reduce moisture contact and make the color more consistent. Without sealing, blackened surfaces can still stain, rub off, or rust depending on the environment.
This approach is less suitable when the part must meet tight tolerances or undergo later finishing. A decorative surface can tolerate variation; a precision surface usually cannot.
Loose scale should be removed before welding, painting, powder coating, plating, adhesive bonding, and CNC machining. Scale can contaminate weld zones, weaken coating adhesion, interfere with accurate measurement, and accelerate tool wear. A coating applied over unstable oxide may fail even if the paint or powder itself is high quality.
Machining also becomes less predictable when scale is left in place. Hard oxide particles can be abrasive, and uneven scale can hide the true surface of the workpiece. For parts that require tight dimensions, the machinist needs clean metal and enough stock allowance.
Inspection is another reason to remove the layer. Fine cracks, laps, seams, and pitting can be harder to see under dark scale. Cleaning exposes the real surface condition before time and money are spent on finishing.
Wire brushing is useful for loose scale and light cleanup, especially on hand-forged parts. Grinding removes heavier scale and local defects but can change dimensions if overused. Shot blasting cleans larger batches efficiently and prepares surfaces for coatings.
Pickling can remove oxide chemically, though it requires correct handling, neutralization, and process control. Machining, turning, and polishing are better when the final part needs accurate geometry or a smooth finish. The right method depends on the next step, not just on appearance.
A common mistake is cleaning too aggressively before deciding the final process. Removing too much material can reduce machining allowance, alter edges, or erase useful surface clues. Start with the least aggressive method that achieves the required surface condition.

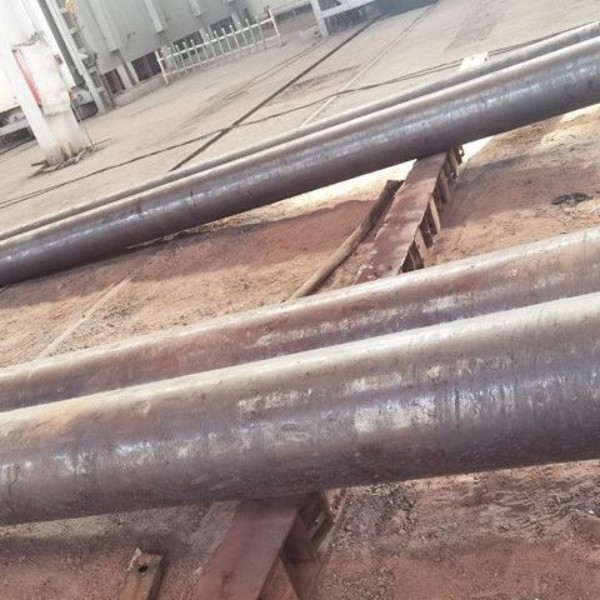

Forged Steel Bars are often supplied with a black surface because many buyers plan to machine them later. Skipping peeling, turning, or grinding can reduce the initial price and shorten availability for rough stock. For shafts, rings, and general machining blanks, that can be practical.
The lower upfront cost can be misleading if the final part needs clean surfaces or tight tolerances. Extra descaling, tool wear, and machining allowance may add cost after delivery. Buyers should compare total processing cost, not only price per kilogram.
A clear purchase order should state whether black, peeled, turned, or ground surface is required. That detail can prevent disputes over appearance, oversize stock, and finishing responsibility.

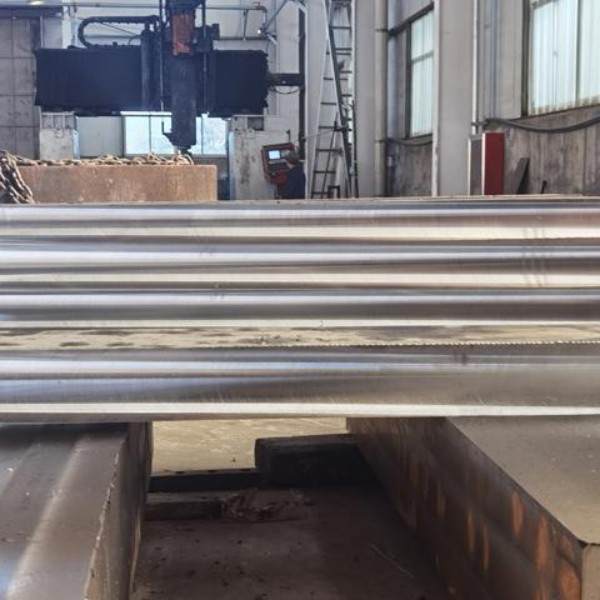

Different surface finishes serve different production goals. Black bars are rougher but economical. Peeled or turned bars remove scale and surface defects, while ground bars provide higher precision and cleaner finish.
Surface Condition | Cost Level | Machining Needed | Precision Level | Best Use Case |
Black forged bar | Low | High | Low to medium | Rough machining stock |
Peeled bar | Medium | Medium | Medium | Cleaner stock for machining |
Turned bar | Medium to high | Lower | Medium to high | Round parts needing better tolerance |
Ground bar | High | Minimal | High | Precision shafts, molds, close-tolerance parts |
The best choice depends on the final component. A rough-machined part may accept black stock, while a precision shop may save time by paying more for a cleaner surface.
Forged Die Steel should never be evaluated mainly by the black surface. Tool steels such as H13, D2, and P20 are selected for hot hardness, wear resistance, toughness, polishability, or dimensional stability. Those properties come from alloy design, forging quality, heat treatment, and inspection.
A dark skin may hide surface issues that matter in die and mold work. Decarburization, shallow cracks, pitting, or uneven hardness can reduce tool life long before the surface color becomes relevant. For hot work dies, thermal fatigue resistance and heat checking behavior are more important than appearance.
Buyers should request grade confirmation, heat treatment condition, hardness range, and inspection results. For critical die blocks, ultrasonic testing and clean machining stock are often worth the added cost.
Forged steel turns black because forging heat creates dark oxide layers, mainly magnetite and mill scale, on the surface. This layer is not the same as red rust, not always a protective coating, and not proof of material quality. It mainly tells you that the surface has been exposed to heat and oxygen.
Keep the black layer when a rustic forged appearance is acceptable and the scale is stable. Remove it before welding, coating, precision machining, polishing, or fine inspection. For Forged Steel Bars, confirm surface condition and machining allowance before buying; for Forged Die Steel, judge the material by grade, heat treatment, hardness, and inspection data.
The black surface explains the steel’s heating history. Real forged steel performance depends on material grade, processing control, inspection, and the final application.
A: Forged steel turns black because high heat causes surface iron to react with oxygen, forming dark iron oxide layers such as magnetite and mill scale.
A: Not usually. Black forge scale forms from heat and oxygen, while red rust forms from moisture exposure and is generally more porous, flaky, and damaging.
A: The black layer may offer limited short-term protection, especially if sealed with oil or wax, but it is not a true rust-proof coating.
A: Mill scale should be removed before welding, painting, coating, precision machining, or inspection because it can affect adhesion, accuracy, and surface quality.
A: Forged Steel Bars are often supplied black because they are usually intended for later machining, making the unfinished surface more economical for rough stock.
A: Surface color does not determine Forged Die Steel performance. Grade, heat treatment, hardness, toughness, and inspection results matter more than the black oxide layer.
