The four main types of steel are carbon steel, alloy steel, stainless steel, and tool steel. That answer is simple, but buyers and engineers usually need a decision framework, not only a definition. A shaft, gear, mold insert, structural bracket, or set of Forged Steel Bars can fail for very different reasons.
Forged steel is not a fifth steel type. It is steel shaped under compressive force to improve form, internal soundness, and performance potential. The base material may still be carbon, alloy, stainless, or tool steel.
Carbon steel is mainly iron and carbon, with limited alloy additions. Low-carbon steel is easier to weld, form, and machine, which suits structural parts, brackets, plates, and general fabrication. Medium-carbon steel offers better strength and wear resistance, making it common for shafts, gears, axles, and machinery parts.
Higher carbon content increases hardness, but usually reduces ductility and weldability. That tradeoff matters when a part must absorb shock or undergo later machining. For economical forged steel parts, medium-carbon grades are often a practical starting point.
Alloy steel uses elements such as chromium, molybdenum, nickel, manganese, and vanadium to improve mechanical behavior. These alloying elements can increase hardenability, fatigue resistance, impact toughness, and high-temperature strength. Heavy-duty forged steel components often use alloy grades because critical parts need more than basic carbon steel can provide.
A crankshaft, gear blank, pressure component, or mining part may need strength through the full section. Molybdenum supports high-temperature strength, nickel improves toughness, and chromium helps hardenability and wear behavior. When failure would be expensive, alloy steel gives engineers a wider safety margin.
Stainless steel is selected when rust, staining, hygiene, or chemical exposure is the main problem. Chromium helps form a passive oxide layer that protects the surface in many environments. Austenitic grades suit food, medical, and chemical uses, while martensitic grades may offer higher hardness.
The common mistake is treating stainless steel as automatically stronger. Some stainless grades resist corrosion well but are not ideal for heavy shock, severe wear, or large forged steel sections. Start with the environment, then check strength, machinability, and cost.
Tool steel is designed for hardness, wear resistance, dimensional stability, and heat-treatment response. It is the main family behind punches, molds, cutters, and die blocks. Forged Die Steel grades such as H13, D2, and P20 should be chosen by working condition, not hardness alone.
Hot-work die steel must resist thermal fatigue and softening at high temperature. Cold-work die steel must resist abrasion, edge damage, and cracking. Plastic mold steel must balance machinability, polishability, stability, and long mold life.
Steel Type | Main Driver | Common Uses | Buying Concern | Forged Relevance |
Carbon steel | Carbon content | Structures, shafts, general parts | Cost, weldability | Economical forged parts |
Alloy steel | Cr, Mo, Ni, Mn, V | Gears, shafts, pressure parts | Toughness, hardenability | High-load forged steel |
Stainless steel | Chromium protection | Food, medical, marine, chemical | Corrosion resistance | Environment-driven use |
Tool steel | Carbides, hardness, heat response | Dies, molds, cutters | Wear, cracking | Core family for Forged Die Steel |
A load-bearing part should not be judged by tensile strength alone. Yield strength, impact toughness, fatigue resistance, hardness profile, and hardenability all affect service life. A shaft that sees torque reversals may fail from fatigue even when static strength looks acceptable.
Medium-carbon and alloy grades are common for these parts because they respond well to forging and heat treatment. Forged steel can support better grain orientation and internal soundness when the process is controlled. For rotating parts, ask how grade, forging reduction, and final heat treatment work together.
Forged Die Steel should be chosen around the failure mode the tool is likely to face. H13 is used for hot-work applications where heat checking and thermal fatigue matter. D2 is valued for wear-heavy cold-work tooling, while P20 is common for plastic molds that need machinability and polishability.
The risk is not always instant breakage. A die may fail through surface cracking, loss of hardness, poor polish retention, or movement after heat treatment. “Hard tool steel” is too vague; decide whether the tool must resist heat, abrasion, impact, or finishing defects.

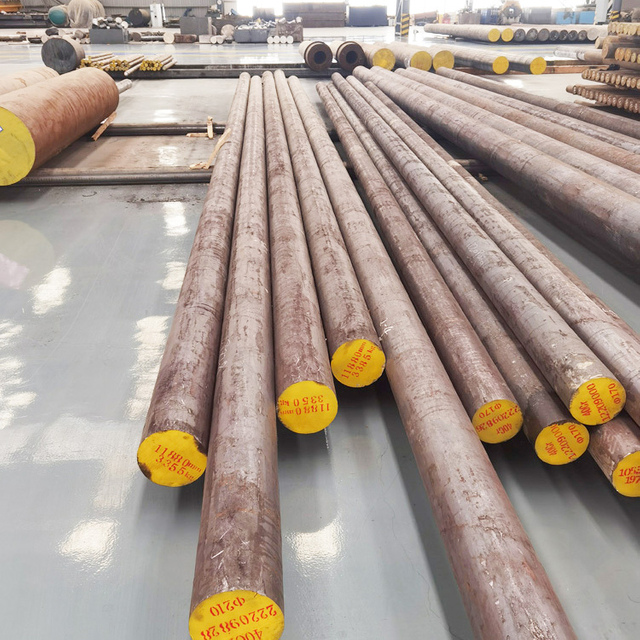

Forged Steel Bars may be supplied as round bars, flat bars, square bars, step shafts, or custom blocks. Surface condition matters: black forged material differs from peeled, turned, ground, or pre-machined stock. That choice affects machining allowance, inspection visibility, delivery time, and final cost.
A precise inquiry should include grade, dimensions, tolerance, heat-treatment condition, surface finish, cutting length, and required tests. Buyers comparing prices without these details may receive quotes for non-equivalent materials.
Harsh service requires a clear ranking of risks. Stainless steel helps when corrosion is the main concern, but it may not solve heavy impact or severe abrasion. Alloy steel supports mechanical load, while tool steel handles die wear, cutting stress, and hot-work surfaces.
Forged steel describes how the material is shaped, not its chemistry. Carbon, alloy, stainless, and tool steel can all be forged when the grade and temperature window allow it. The value comes from compressive deformation, controlled shape development, and potential internal quality improvement.
That distinction prevents sourcing mistakes. A buyer asking only for forged steel may still receive a grade that is too soft, too brittle, difficult to machine, or unsuitable for heat treatment. A correct specification names both the grade and the forged supply condition.
Grain flow is a key reason forged components are chosen for safety-critical parts. During forging, the metal structure can be shaped to follow the part geometry, improving fatigue and impact resistance when the process is well designed. Forging ratio also matters because sufficient reduction can help close voids and refine structure.
Poor practice reduces those benefits. Excessive temperature, insufficient reduction, or poor cooling can leave grain growth, surface defects, or inconsistent properties. The term forged steel should be supported by process control, inspection, and documented results.
Heat treatment converts material potential into service behavior. Annealing improves machinability, normalizing refines structure, quenching increases hardness, and tempering reduces brittleness while improving toughness. Stress relieving can reduce distortion risk before or after machining.
The same grade can behave very differently by delivery condition. A pre-hardened P20 block, an annealed D2 bar, and a quenched-and-tempered 4140 shaft are not interchangeable. For forged steel applications, hardness range, microstructure, and dimensional stability should be specified before production.
Forged Steel Bars are often preferred for large sections, heavy machining, and critical load paths. Rolled bars may be more economical for standard sizes and non-critical parts. Cast steel can produce complex shapes but needs close attention to porosity, shrinkage, and consistency.
Material Form | Main Advantage | Typical Limitation | Best Use Case |
Forged Steel Bars | Internal soundness and grain control | Higher cost, longer lead time | Shafts, rings, blocks, heavy-duty parts |
Rolled bars | Availability and cost | Less tailored grain flow | Standard machining stock |
Cast steel | Complex geometry | Porosity and shrinkage risk | Large shapes where geometry dominates |
Standards make steel purchasing more precise by defining chemistry, property expectations, and delivery requirements. ASTM, AISI/SAE, EN, and DIN designations help buyers compare grades, but equivalent names do not always mean identical performance. Heat treatment, cleanliness, impact requirements, and inspection level can change the result.
For international sourcing, grade conversion should be checked by chemical composition and mechanical properties, not name similarity alone. Critical forged steel should never be approved from a label alone.
A mill test certificate should show heat number, steel grade, chemistry, mechanical properties, delivery condition, and relevant test results. Traceability connects a delivered bar or block to the original melt and inspection record. For Forged Steel Bars, this documentation can be as important as the physical material.
Pressure equipment, tooling, automotive, oil and gas, and aerospace supply chains often require stronger traceability. A lower quote without MTC, heat treatment record, or inspection confirmation may create hidden cost.
Ultrasonic testing helps detect internal discontinuities such as cracks, voids, or lamination-like defects. Hardness testing confirms whether the supplied condition matches machining or service needs. Charpy impact testing, grain size review, inclusion rating, and macroetch examination give deeper evidence when toughness and internal quality matter.
Large forged steel sections deserve closer inspection because internal defects may not appear on the surface. For die steel, microstructure and carbide distribution can influence wear behavior, cracking resistance, and polish quality.
Decarburization reduces surface carbon and can leave a softer outer layer after heating. Quench cracking may occur when cooling is too aggressive or geometry creates stress concentration. Segregation, non-metallic inclusions, grain growth, and poor surface condition can shorten service life.
Many failures blamed on “bad steel” are specification failures. Wrong grade selection, poor heat treatment, missing inspection, or unsuitable working conditions can create the same result.
Carbon steel is the starting point for general fabrication, structural parts, brackets, fixtures, and low-risk machine components. It controls cost and is usually easier to source than specialty grades. Add coating, paint, oil, or galvanizing when corrosion exposure becomes a concern.
Alloy steel is usually better for high-load forged steel parts, large Forged Steel Bars, shafts, gears, rings, and components requiring toughness. Buyers should confirm heat treatment, hardness range, impact toughness, and ultrasonic testing. A strong alloy grade without the right processing route may still underperform.
Stainless steel fits marine, food, chemical, medical, architectural, and outdoor applications where corrosion drives the decision. Choose the stainless family by strength, magnetism, weldability, and temperature exposure. Do not use stainless as a default substitute for tool steel or alloy steel unless the loads support it.
Tool steel is the logical choice for hot-work dies, cold-work dies, plastic molds, punches, blades, and tooling inserts. Forged Die Steel should be compared by wear resistance, toughness, hot hardness, machinability, polishability, and heat-treatment response. The best grade is the one matched to the real damage mechanism.
The four main types of steel are carbon steel, alloy steel, stainless steel, and tool steel. The best choice depends on environment, load, wear, heat, budget, and inspection requirements. Forged steel should be evaluated by grade, grain flow, forging ratio, heat treatment, surface condition, and test reports.
For Forged Steel Bars, specify grade, size, tolerance, surface finish, delivery condition, UT inspection, and MTC before comparing suppliers. For Forged Die Steel, choose around heat, wear, toughness, polishability, and expected die life rather than hardness alone.
A: The four main types are carbon steel, alloy steel, stainless steel, and tool steel. Each differs by composition, properties, corrosion resistance, hardness, and typical industrial use.
A: No. Forged steel refers to steel shaped by compressive force, not a separate steel category. It can be made from carbon, alloy, stainless, or tool steel.
A: Forged steel is commonly used for shafts, gears, rings, pressure parts, tools, and load-bearing components where strength, toughness, and reliable internal structure are required.
A: Forged Steel Bars are shaped through forging and are often chosen for larger diameters, custom sizes, or critical parts. Rolled bars are usually more economical for standard stock sizes.
A: Tool steel is usually best for dies and molds. Forged Die Steel grades such as H13, D2, and P20 are selected by heat resistance, wear resistance, toughness, and machinability.
A: Stainless steel is generally the best choice for corrosion resistance because chromium helps form a protective surface layer, making it suitable for food, medical, marine, and chemical environments.
