Forged steel is widely used where strength, toughness, and long-term reliability matter more than the lowest material cost. For engineers, buyers, and machining teams, the key question is not only what the material is, but whether it is suitable for a specific load, temperature, part size, or failure-risk environment.
Forged steel is steel shaped by compressive force through hammering, pressing, rolling, or die forming. In most industrial processes, the steel is heated until it becomes plastic enough to deform without cracking, but it is not melted and poured like cast steel. This difference is important because forging changes the internal structure of the metal while keeping it in a solid working state.
The phrase does not refer to one single grade. Carbon steel, alloy steel, stainless steel, tool steel, and die steel can all be forged if they are formed under controlled pressure. A 4140 shaft, an H13 die block, a forged flange, or a large round bar may all fall under the same process category even though their chemical compositions and applications are different.
From a buyer’s point of view, forged steel should be understood as a process-improved material. The value comes from controlled deformation, refined grain structure, and better internal soundness. This makes it useful for components exposed to heavy load, impact, pressure, vibration, and repeated stress.
The main reason manufacturers use forged steel is its balance of mechanical properties. Tensile strength shows how much pulling force the material can resist before breaking, while yield strength indicates when permanent deformation begins. Impact toughness measures resistance to sudden shock, and elongation shows how much the steel can stretch before failure.
Fatigue strength is especially important in rotating or cyclically loaded parts. Gears, crankshafts, axles, pressure components, and heavy machinery parts often fail after repeated stress cycles rather than one single overload. A forged structure helps reduce weak internal points that can become crack origins during long service.
Hardness also matters, but it should never be considered alone. A very hard material may resist wear, yet it can become more brittle if the heat treatment is poorly controlled. The right specification should balance hardness, toughness, machinability, and fatigue performance according to the final application.
Grain flow is one of the most important differences between forged and non-forged products. During forging, the grains inside the steel are compressed and redirected so they follow the general shape of the part. This aligned structure helps the component resist cracking across critical load paths.
Internal soundness refers to the absence of harmful internal defects such as voids, shrinkage, porosity, or major discontinuities. Proper forging can help close small internal voids and improve center density, especially in large sections. This is one reason forged bars, shafts, rings, and blocks are often selected for parts where sudden failure is unacceptable.
For high-stress components, internal quality can be more important than surface appearance. A bar may look acceptable from the outside but still contain internal flaws if the reduction ratio, heat control, or inspection level is poor. Buyers should ask about forging ratio, ultrasonic testing, and traceability when the part will be used in critical service.
Many buyers assume that harder steel is automatically stronger, but that can be misleading. Hardness usually improves wear resistance, yet excessive hardness can reduce impact toughness and increase cracking risk. This issue becomes more serious in shafts, gears, Forged Die Steel, and impact-loaded components.
Tooling applications show this balance clearly. A hot-work die needs enough hardness to resist wear and deformation, but it also needs toughness to survive thermal cycling and mechanical shock. If the die steel is too brittle, heat checking, edge cracking, or premature failure can occur even when the hardness reading looks acceptable.
A better approach is to define the working condition first. Sliding wear, impact load, hot contact, cyclic stress, and machining requirements all need different property balances. The best forged steel choice is not always the hardest option; it is the grade and heat treatment condition that match the service environment.
Forging can improve steel quality, but defects may still appear if process control is weak. Cracks can result from incorrect temperature, excessive deformation, or unsuitable cooling. Laps and folds may form when metal flows incorrectly and overlaps during shaping.
Inclusions and segregation come from material cleanliness and solidification history. Decarburization can reduce surface hardness by lowering carbon content near the surface. Scale pits, seams, and quench cracks can affect machining, tool life, strength, and final part reliability.
A practical inspection should include more than a quick visual check. For critical parts, buyers should confirm both surface and internal quality before machining begins.
Cast steel is made by pouring molten metal into a mold. This allows complex shapes, but the casting process may create shrinkage, porosity, or less directional grain structure. These issues can reduce fatigue resistance and impact reliability in demanding applications.
Forged steel is shaped under pressure, which improves grain flow and internal density. For parts such as crankshafts, gears, shafts, flanges, and pressure components, this internal structure can be a major advantage. Cast steel may still be suitable for complex shapes or lower-stress parts, but forged material is usually preferred when failure risk is high.
Rolled steel is produced by passing hot or cold steel through rolling mills to create plate, sheet, or bar forms. It is widely used because it is economical, available, and suitable for general machining stock. For many non-critical parts, rolled bar is often enough.
Forged Steel Bars are more relevant when large diameter, custom section size, improved internal soundness, or heavy-duty performance is required. Open-die forging can produce large bars, blocks, rings, and shafts with better center integrity than ordinary rolled stock. The trade-off may include higher cost, longer lead time, and additional machining allowance.
Carbon steel describes composition, not forming method. It mainly contains iron and carbon, with the carbon level influencing hardness, strength, ductility, weldability, and machinability. A carbon steel grade can be forged, rolled, cast, or machined depending on the production route.
This distinction matters when reading supplier descriptions. A product described as carbon steel may not have the same internal structure as forged steel. Buyers should confirm both the grade and process instead of assuming the terms mean the same thing.
Stainless steel is defined by corrosion-resistant alloy content, especially chromium. It is commonly used where moisture, chemicals, food processing, marine exposure, or hygiene requirements are involved. Stainless steel can also be forged, but not every stainless product is forged.
Forged carbon or alloy steel may offer better strength-to-cost value in heavy-duty mechanical parts. Stainless grades may be better when corrosion resistance is the main concern. The correct choice depends on load, environment, temperature, maintenance access, and expected service life.
Forged Steel Comparison Matrix
Comparison | Main Difference | Strength | Corrosion Resistance | Cost | Best Use | Limitation |
Forged vs Cast Steel | Pressure forming vs molten pouring | Higher fatigue and impact reliability | Depends on grade | Usually higher | Shafts, gears, flanges, pressure parts | Less shape freedom |
Forged vs Rolled Steel | Forging reduction vs mill rolling | Better for large critical sections | Depends on grade | Higher | Large bars, blocks, rings, shafts | More machining may be needed |
Forged vs Carbon Steel | Process vs composition | Depends on grade and treatment | Usually low to moderate | Varies | Machinery parts, tools, shafts | May need coating or alloying |
Forged vs Stainless Steel | Process vs corrosion-resistant alloy | Depends on stainless grade | High | Often higher | Valves, marine parts, food equipment | Machining can be harder |
Grade selection should start with the application. 1045 is a medium-carbon grade used for general shafts, pins, and machinery parts where moderate strength and machinability are needed. 4140 contains chromium and molybdenum, giving better hardenability and strength for axles, gears, tool holders, and heavy industrial components.
4340 adds nickel along with chromium and molybdenum, making it useful for high-strength and fatigue-loaded parts. 8620 and 9310 are often chosen for gears because they respond well to carburizing, creating a hard wear-resistant case with a tougher core. 52100 is a high-carbon chromium grade associated with bearing and wear-related applications.
Carbon increases hardness and strength, but too much carbon can reduce ductility and weldability. Chromium improves hardenability and wear resistance, while nickel helps toughness, especially in demanding load conditions. Molybdenum supports strength, hardenability, and resistance to softening at elevated temperature.
Manganese assists strength and hardenability, while vanadium can refine grain structure and improve wear performance. Tungsten appears in some tool steels where hot hardness and tempering resistance are required. Silicon may support strength and oxidation resistance depending on the alloy system.
Forged Die Steel is used for molds, dies, inserts, punches, and high-wear tooling. These applications demand more than basic strength because tooling often faces repeated impact, heat cycling, abrasion, and surface pressure. A die failure can interrupt production, damage parts, and raise maintenance costs.
H13, 1.2344, and SKD61 are common hot-work die steel options for die casting, extrusion, and hot forming. D2 and A2 are often used in cold-work applications where wear resistance is important. S7 is valued for shock resistance, while P20 is commonly associated with plastic mold tooling.
Performance depends on the full treatment route. Hot hardness, thermal fatigue resistance, polishing response, nitriding suitability, and heat checking behavior should be considered before choosing a grade. A lower-cost tool steel may become expensive if it causes frequent downtime or premature die repair.

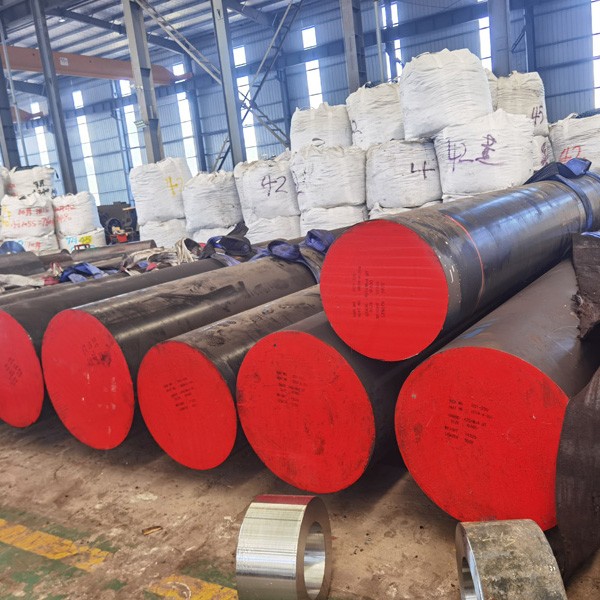

Forged Steel Bars are supplied as round, square, flat, or custom bar stock for machining into shafts, cylinders, gears, rings, sleeves, and heavy-duty components. They are often selected when ordinary rolled bars do not provide enough internal soundness or size flexibility. Large cross-sections benefit most from controlled forging and inspection.
A complete order should include more than grade and diameter. Buyers should define length, tolerance, straightness, surface condition, hardness range, delivery condition, machining allowance, and inspection requirements. Without these details, the supplied bar may create extra machining cost or fail to meet final part requirements.
Forged Steel Grade Selection Guide
Grade | Alloy Family | Key Strength | Machinability | Heat Treatment Response | Typical Application | Buyer Note |
1045 | Medium carbon steel | Balanced strength | Good | Moderate | Shafts, pins, general parts | Cost-effective for non-extreme loads |
4140 | Cr-Mo alloy steel | Strength and wear resistance | Good after proper treatment | Strong | Axles, gears, machinery parts | Often ordered quenched and tempered |
4340 | Ni-Cr-Mo alloy steel | High toughness | Moderate | Excellent | Heavy-duty shafts, fatigue parts | Useful for critical loading |
8620 | Ni-Cr-Mo carburizing steel | Hard case, tough core | Good | Excellent for carburizing | Gears, pinions | Specify case depth |
9310 | High-performance carburizing steel | Fatigue resistance | Moderate | Excellent | Aerospace-adjacent gears, precision gears | Higher-cost option |
52100 | High-carbon chromium steel | Wear resistance | Moderate | High hardness potential | Bearings, wear parts | Control heat treatment carefully |
H13 / 1.2344 | Hot-work tool steel | Hot hardness | Fair | Strong | Dies, inserts, hot tooling | Watch thermal fatigue |
D2 | Cold-work tool steel | Wear resistance | Lower | High hardness | Blanking dies, punches | Toughness is limited |
A material test certificate, often called an MTC or MTR, connects the supplied steel to documented test results. It should show the heat number, chemical composition, mechanical properties, heat treatment condition, and delivery standard. For critical applications, this document is not optional paperwork; it is part of the product’s quality evidence.
Heat number traceability allows buyers to connect each bar, block, or component back to its production batch. Without this link, chemical and mechanical test results cannot be reliably matched to the delivered material. Audited projects may also require EN 10204 3.1 or 3.2 certification depending on contract requirements.
Surface inspection alone cannot reveal every defect. Ultrasonic testing, often specified for large steel forgings, uses sound waves to detect internal discontinuities. ASTM A388 is commonly associated with ultrasonic examination of steel forgings.
UT is especially relevant for large forged bars, die blocks, shafts, pressure parts, oil and gas components, and heavy rings. These products may be machined deeply after delivery, so hidden internal defects can become expensive problems. Asking for UT before shipment is often cheaper than discovering a flaw after rough machining.
Standards help define what the supplier must deliver. ASTM A668 is used for many carbon and alloy steel forgings, while ASTM A681 covers tool steel materials. ASTM A105 and ASTM A182 are commonly seen in forged piping components, and ASTM A388 relates to ultrasonic inspection.
International projects may reference EN 10204 for inspection documents, EN 10083 for heat-treatable steels, DIN 1.2344 for H13-type hot-work die steel, or JIS SKD61 for equivalent tooling applications. The standard should match the application and the buyer’s inspection expectations.
Good supplier questions prevent costly mistakes. Ask what grade is recommended for the working load, whether the bar is forged or rolled, and what heat treatment condition is supplied. Confirm whether the quoted material includes hardness testing, ultrasonic testing, certificate type, and surface preparation.
Lead time and MOQ also matter in real purchasing. A technically correct grade may not be practical if it cannot be delivered in the required size or schedule. The final choice should balance material performance, documentation, machinability, inspection level, and total project risk.
Suggested Checklist: Buyer’s Forged Steel RFQ Checklist
● Application and working load
● Steel grade or equivalent standard
● Shape: bar, block, ring, shaft, die steel, or custom forging
● Size and tolerance
● Heat treatment condition
● Hardness target
● Surface finish
● Machining allowance
● UT or other NDT requirement
● MTC / EN 10204 certificate requirement
● Delivery time and MOQ
Choose forged steel when the part must handle high stress, repeated loading, impact, pressure, or safety-critical service. Its main advantage is not only higher strength, but better internal soundness and more reliable performance under demanding conditions.
Forged Steel Bars are suitable when machinable stock needs stronger internal integrity than ordinary rolled material. Forged Die Steel is the better choice when die life, wear resistance, hot hardness, and crack resistance affect production cost.
Before ordering, confirm the grade, process, heat treatment, hardness, surface condition, testing level, and certificate requirements. The best choice is not always the hardest or cheapest material. It is the one whose properties, documentation, and inspection level match the real operating risk.
A: Forged steel is steel shaped under compressive force, usually by hammering, pressing, or rolling, to improve grain structure, toughness, strength, and fatigue resistance.
A: Forged steel is usually stronger and tougher than cast steel because forging reduces porosity and aligns grain flow, making it better for high-stress parts.
A: Forged steel can rust if it is carbon or low-alloy steel without protection. Stainless forged steel offers better corrosion resistance depending on its chromium content.
A: Forged Steel Bars are commonly machined into shafts, rings, gears, cylinders, flanges, and heavy-duty components that need good internal soundness and reliable strength.
A: Forged Die Steel is tool steel shaped by forging for molds, dies, inserts, and punches. It is selected for wear resistance, toughness, hot hardness, and tool life.
A: Buyers should review the steel grade, heat treatment, hardness range, material test certificate, heat number traceability, surface condition, and ultrasonic testing requirements.
