Forged steel is steel shaped under compressive force to improve density, grain structure, strength, and service reliability. Most buyers are not only asking what the material is; they want to know whether it is safer, longer-lasting, and worth the cost compared with cast, rolled, or machined steel.
One major benefit of forged steel is directional grain flow. During forging, compressive force deforms the internal grain structure so it follows the contour of the part rather than remaining random or interrupted. In a shaft, gear, ring, or flange, this alignment helps the component carry stress along a more favorable load path.
Grain refinement also improves consistency around shoulders, fillets, bores, and other geometry changes. These areas often become stress concentrators if the material structure is weak or inconsistent. A refined structure gives engineers a more predictable strength reserve under bending, torque, and pressure.
Cast components can contain shrinkage cavities, gas porosity, and non-uniform solidification zones. Forged steel is worked from solid material, and the compressive process helps close small voids while improving internal density. This reduces the chance that a hidden defect will become the starting point of a crack.
The benefit is especially important in pressure parts, rotating equipment, and load-bearing machinery. A component may look acceptable after machining, but internal discontinuities can still shorten service life. Better internal soundness improves confidence before the part enters operation.
Tensile strength describes resistance to fracture under pulling stress, while yield strength indicates when permanent deformation begins. Forged steel often performs well in both areas because the metal has been consolidated through mechanical working. That makes it useful for parts that must resist bending, stretching, and heavy load transfer.
Construction machinery, industrial shafts, oil and gas components, pressure equipment, and automotive drivetrain parts all benefit from this load-bearing capacity. Even slight deformation can cause vibration, leakage, misalignment, or accelerated wear. Stronger mechanical properties reduce that risk when the right grade and heat treatment are specified.
Structural integrity combines grain flow, defect control, heat treatment response, dimensional stability, and inspection results. Forged steel is often selected because these factors can be controlled more reliably than in many cast or purely machined forms. This explains its role in components where failure could cause downtime, damage, or safety exposure.
Structural Benefit | Technical Reason | Real-World Advantage |
Better load path | Directional grain flow | Improved torque and bending performance |
Fewer hidden voids | Reduced porosity | Lower crack-initiation risk |
Higher strength potential | Grain refinement | Better heavy-duty suitability |
Predictable quality | Inspection compatibility | Safer engineering decisions |
Many steel parts fail after repeated stress cycles rather than one overload event. Rotation, vibration, pressure fluctuation, and repeated contact can slowly start cracks even when the part is not overloaded. Forged steel offers strong fatigue resistance because grain flow, density, and internal soundness help delay crack initiation.
This advantage matters in crankshafts, gear blanks, rollers, drivetrain parts, and heavy-duty pins. A rotating shaft may experience alternating bending stress every revolution, while a gear tooth faces repeated contact stress. When fatigue controls service life, a reliable internal structure can be more valuable than a lower purchase price.
Impact toughness measures the ability to absorb sudden energy without brittle cracking. Forged steel can perform well under shock because refined structure and controlled ductility help resist fast crack propagation. Mining tools, agricultural machinery, heavy equipment, and lifting-related components often need this balance of strength and toughness.
Material selection still matters. A very hard grade may resist wear but become less forgiving if toughness is ignored. For shock-loaded parts, buyers should review Charpy impact requirements, operating temperature, notch sensitivity, and final heat treatment condition.
Wear resistance depends on alloy chemistry, hardness, surface condition, lubrication, and load. Forging creates a reliable starting structure, while alloy steel or tool steel grades can be heat treated to resist abrasion and contact fatigue. Pins, rollers, gears, dies, and sliding components benefit when wear is a major cost driver.
Longer wear life reduces replacement frequency and shutdown labor. It also lowers the time spent on teardown, alignment, inspection, and reassembly. In continuous-operation facilities, avoiding one unplanned stop may justify a better material specification.
Forging improves internal structure, but heat treatment defines the final performance balance. Annealed material favors machinability, normalized material improves uniformity, and quenched and tempered material provides a stronger balance of hardness and toughness. Stress relieving can reduce movement during machining, especially in large sections.

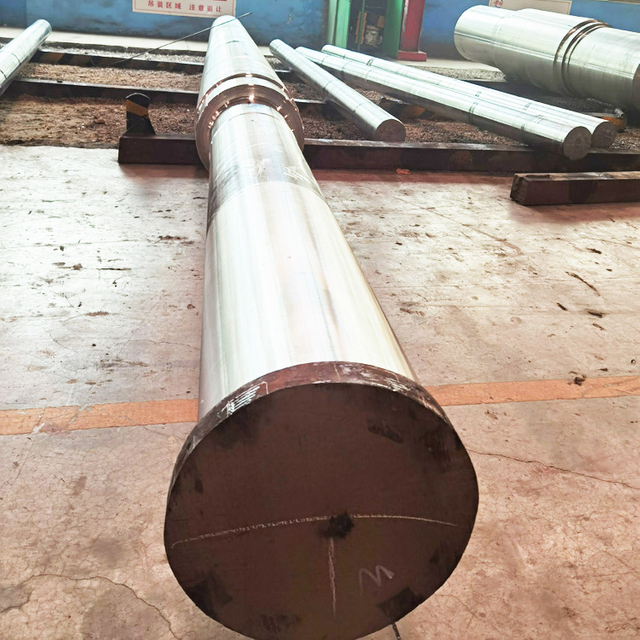

Forged Steel Bars are often used as starting stock for machined parts that must carry load after major material removal. Round, square, and flat bars can be processed to improve internal density and uniformity through the section. This gives manufacturers a stronger base before turning, milling, drilling, or grinding.
Cross-section consistency matters when the finished component is smaller than the original bar. If the center is less reliable than the surface, machining may expose defects or create performance variation. Forged stock helps reduce that risk in parts where internal quality is as important as external finish.
Shaft blanks, gear blanks, rollers, rings, bushings, and heavy-duty pins often face torque, bending, contact stress, or fatigue. Forged Steel Bars provide a dependable starting form because the material has already been mechanically worked before machining. This improves confidence when the finished part will operate under high load.
The benefit is not only strength. A well-specified bar can reduce scrap risk, improve machining planning, and support more predictable heat treatment response. For large components, those advantages matter because replacement material, machine time, and inspection cost are all higher.
Bars may be supplied black, peeled, turned, ground, rough machined, or finished depending on the application. Black surface is usually lower cost but requires more machining allowance, while peeled or turned stock can reduce surface defects and speed production. Ground bars support tighter dimensions but cost more upfront.
Choosing the right surface condition prevents two common problems: buying more finishing than needed or leaving too little machining allowance. A buyer should consider final diameter, straightness, decarburization risk, surface crack removal, and inspection access.
Quality verification is a major benefit in industrial purchasing. Ultrasonic testing can screen for internal discontinuities, magnetic particle inspection can reveal surface or near-surface cracks, and hardness testing confirms heat treatment response. A Mill Test Certificate should connect grade, heat number, chemistry, and mechanical test results.
Forged Die Steel is used where tooling must survive pressure, heat, friction, and repeated contact. Forging dies, extrusion dies, die-casting dies, and plastic molds all depend on toughness and internal soundness. A cleaner, more uniform structure helps reduce the chance of crack initiation during production.
Tooling failure is expensive because it interrupts output and can damage the parts being produced. When a die cracks early, the cost includes replacement steel, setup labor, requalification, and inconsistent product quality.
Hot work die steels such as H13 are valued for hot hardness, thermal stability, and resistance to softening during repeated heating. In die casting, extrusion, and hot forging, the tool surface may experience high contact pressure and rapid temperature changes. A die that loses hardness too quickly can deform, wear, or produce parts outside tolerance.
Forged steel contributes as a foundation rather than a complete solution. Proper alloy selection, controlled heat treatment, double tempering where appropriate, and surface finishing all shape final tool life.
Thermal fatigue occurs when repeated heating and cooling create surface stress. Over time, that stress can form fine cracking known as heat checking. Forged Die Steel with good toughness, thermal fatigue resistance, and heat treatment control can slow this damage.
Surface damage affects more than the die itself. Heat checks can transfer marks to the finished product, increase polishing needs, or create early rejection issues.
Forged Die Steel Benefit | Tooling Problem Solved | Relevant Property |
Crack resistance | Early die fracture | Toughness and internal soundness |
Shape retention | Heat deformation | Hot hardness |
Surface durability | Heat checking | Thermal fatigue resistance |
Longer runs | Wear and dimensional drift | Hardness control |
Forged steel may cost more at the purchase stage, but lifecycle cost is the better comparison. A longer-lasting component can reduce replacement frequency, repair labor, inventory pressure, and warranty exposure. For critical machinery, the cheapest material can become expensive if it fails early.
Price per kilogram does not show downtime cost. A failed shaft, gear, die, or pressure component may stop production, damage connected parts, and require emergency machining or expedited freight. Longer service life gives buyers a stronger economic reason to choose forgings for high-risk applications.
Operational reliability is one of the most practical benefits of forged steel. Mining, energy, oil and gas, aerospace, heavy equipment, and automotive production all depend on components that can perform under stress without frequent intervention. Fewer failures mean fewer shutdowns and more predictable maintenance schedules.
Maintenance teams also gain planning flexibility. Instead of reacting to sudden breakage, they can inspect, service, and replace components during scheduled outages. That improves safety, labor efficiency, and production continuity.
Engineers make safer decisions when material behavior is documented and repeatable. Forged steel supports this through mechanical testing, heat treatment records, hardness results, NDT reports, and heat number traceability. These records help confirm that the component matches the design intent before service.
Procurement teams should ask for more than a material name. A strong specification includes grade, standard, delivery condition, inspection level, certificate type, and acceptance criteria. Documentation turns the claimed benefit into verifiable evidence.
Longer-lasting parts reduce the material, energy, and labor associated with frequent replacement. Forged components can also support efficient manufacturing when near-net shapes or appropriate bar sizes reduce unnecessary machining waste. Steel recyclability adds another advantage when the material is properly sorted and managed.
Cost Factor | Forged Steel Advantage | Long-Term Value |
Replacement frequency | Longer service life | Lower recurring material cost |
Downtime risk | Better fatigue and impact performance | Higher equipment availability |
Inspection confidence | MTC, UT, MPI, hardness testing | Fewer quality surprises |
Waste | Better yield and longer component life | Lower resource consumption |
The main benefits of forged steel are stronger internal grain structure, reduced porosity, better fatigue resistance, higher impact toughness, and longer service life. Forged Steel Bars provide a reliable starting material for precision components, while Forged Die Steel helps tooling survive heat, pressure, wear, and repeated production cycles.
A practical decision should begin with the part’s working conditions. Use this material when the component faces heavy load, shock, torque, pressure, heat, wear, or cyclic stress. Then specify the right grade, heat treatment, surface condition, testing level, and certificate requirement.
The final takeaway is simple: forged steel is not just stronger in a general sense. Its real value is giving engineers, buyers, and maintenance teams a more reliable material for parts where failure is expensive, unsafe, or difficult to repair.
A: Forged steel offers higher strength, better fatigue resistance, improved toughness, and fewer internal defects because forging refines grain flow and compresses the metal structure.
A: Yes. Forged steel is generally stronger because it has aligned grain flow and fewer porosity-related defects, while cast steel may have shrinkage cavities or uneven structure.
A: It lasts longer because refined grain structure and improved density help resist fatigue cracks, impact damage, wear, and repeated stress in demanding applications.
A: Forged Steel Bars are commonly used for shafts, rollers, gears, rings, pins, and heavy machined parts that need reliable strength through the cross-section.
A: Forged Die Steel provides better toughness, wear resistance, and thermal fatigue performance, helping dies resist cracking, deformation, and surface damage during high-pressure production.
A: It can be worth it when failure risk, downtime, replacement labor, or safety requirements matter more than initial material price. The value is usually lifecycle-based.
