Forged steel is steel shaped by heat and compressive force until the material flows into a stronger, more useful form. The purpose is not only to change the outside shape. A good forging refines grain structure, improves directional grain flow, and creates better resistance to fatigue, impact, and heavy service than many cast or over-machined parts.
This guide explains how to forge steel from a practical and buyer-focused viewpoint. It covers steel selection, heating control, forging methods, defect prevention, heat treatment, and final inspection.
The best forged steel project starts with the correct grade. Low-carbon steel is forgiving and works well for brackets, simple shafts, and general parts because it has lower flow stress and a wide hot-working range. Medium-carbon grades such as 1045 offer higher strength after heat treatment, while alloy steel such as 4140 or 4340 adds chromium, molybdenum, or nickel for toughness and hardenability.
Tool steel needs more control. High-carbon steel and alloy tool grades can crack if forged too cold, overheated, or cooled too quickly. Select the grade according to the service condition first: impact needs toughness, sliding contact needs wear resistance, and hot tooling needs thermal fatigue resistance.

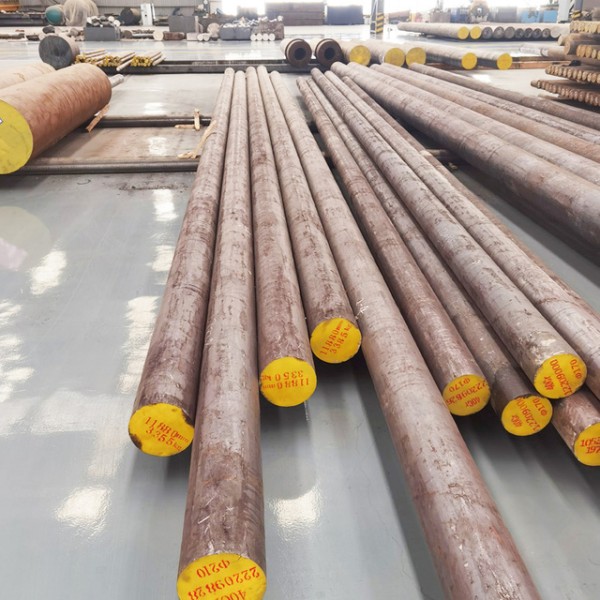

Forged Steel Bars are useful when the final component will be machined but still needs the internal quality of a forging. Round, flat, square, and hex bars are common starting forms for shafts, rollers, gear blanks, die blocks, and heavy-duty machine parts. Compared with ordinary stock, forged steel bars can offer better center soundness, refined grain structure, and more reliable performance under repeated load.
Buyers should specify more than diameter or length.
Bar Type | Typical Use | Key Buying Concern |
Round forged bar | Shafts, rollers, rings | Center soundness, straightness |
Flat forged bar | Tooling, plates, blocks | Thickness tolerance, machining stock |
Square forged bar | Dies, blocks, tooling | Grain flow, internal defects |
Hex forged bar | Fasteners, specialty parts | Dimensional accuracy |
Forged Die Steel is chosen when tooling must handle heat, pressure, wear, and repeated impact. H13 is widely used for hot-work dies because it resists heat checking and thermal fatigue. D2 suits wear-heavy cold-work tooling, while S7 is preferred where impact resistance is more important than maximum hardness.
Hardness alone is not enough for die selection. Two steels with similar HRC values may behave differently under thermal cycling, abrasive wear, or shock loading.
Pro-Tip: Choose forged die steel by heat exposure, impact load, wear mode, repair welding needs, and expected downtime cost.
Forged steel quality depends heavily on temperature control. Many carbon and alloy steels are forged around 1,000–1,250°C, although the correct range depends on chemistry, size, and final property requirements. Color can guide small-shop work, but it is not precise for critical components. Industrial production uses thermocouples, optical pyrometers, and controlled furnace recipes because temperature affects flow stress, grain size, and defect risk.
A billet can look hot on the surface while the center remains too cold. This matters for thick forged steel bars, large blocks, and die stock because uneven heating causes uneven deformation. Soaking depends on section size, furnace type, alloy content, and target temperature. Gas furnaces handle large loads but heat slowly; induction heating is faster and cleaner for repeatable billet sizes. The goal is through-heating, not simply a bright surface.
Open-atmosphere heating creates oxide scale on steel. Heavy scale can pit the surface, damage dies, or become trapped in a die cavity. Decarburization is also risky because carbon loss at the surface reduces hardness potential, especially in tools, wear parts, and forged die steel.
Protective atmospheres, controlled soak times, descaling, and correct furnace practice reduce these problems.
Forging is controlled metal movement, not random hammering. Drawing out lengthens the steel and reduces cross-section, while upsetting shortens the piece and increases thickness. Bending, flattening, tapering, punching, and edging redirect material toward the required form.
The operator must also plan where displaced metal will go. Poor preforms can fold, trap scale, or leave thin sections underfilled.
Open-die forging shapes steel between flat or simple dies without enclosing the workpiece. It is suited to shafts, rings, discs, bars, blocks, and low-volume heavy parts. Repeated reductions improve internal soundness and help refine the as-cast structure.
This method is flexible but usually leaves more machining allowance. For custom forged steel bars or very large components, open-die forging is often the most practical route.
Closed-die forging forces heated steel into shaped impressions. It is common for connecting rods, crankshafts, gears, flanges, hubs, and repeatable industrial parts. Flash around the parting line creates back pressure that helps fill ribs, bosses, and detailed features.
Draft angle helps release the part, fillet radius reduces laps and die stress, and the parting line affects trimming and dimensional accuracy. Tooling costs more, but production efficiency improves when volume is high.
Factor | Open-Die Forging | Closed-Die Forging |
Best for | Large bars, shafts, rings | Repeatable complex parts |
Tooling cost | Lower | Higher |
Tolerance | Looser | Tighter |
Volume | Low to medium | Medium to high |
Machining required | Usually more | Usually less |
Directional grain flow is a major reason engineers specify forged steel. During deformation, the internal fiber structure follows the part shape, which can improve fatigue resistance and impact toughness when aligned with the main load path. Excessive machining can cut through that structure and weaken the design advantage.
Shaft shoulders, hooks, gear teeth, crank throws, and die blocks benefit when grain flow supports the working stress. A good forging plan starts with the load path, not just the finished drawing.
Pro-Tip: For high-load forged steel parts, design the shape so grain flow follows the expected stress direction before finish machining begins.
Laps form when folded metal is pressed into the surface without bonding. Cold shuts occur when two metal streams meet but fail to fuse because temperature, pressure, or surface cleanliness is inadequate. Underfill appears when the die cavity is not completely filled.
These defects usually come from process decisions. Low temperature, poor preform design, insufficient billet volume, off-center placement, or excessive flash restriction can all create nonconforming forged steel. Prevention is cheaper than repair because many laps and cold shuts cannot be removed safely.
Billet or ingot stock can contain pipe, segregation, shrinkage porosity, or centerline defects. Forging can close and refine some discontinuities, but only when the forging reduction ratio is adequate. Large forged steel bars should be checked for internal soundness before they are machined into shafts, pressure parts, or load-bearing components.
Ultrasonic testing detects internal defects that visual inspection cannot see. Macroetch testing can reveal grain flow, segregation, and abnormal internal structure on sample sections.
High-carbon steel, alloy steel, and forged die steel are sensitive to temperature errors. Thermal cracking can occur when steel cools too quickly or is forged below its ductile range. Quench cracking may appear later if hardening is too aggressive.
Rounded transitions, controlled cooling, intermediate annealing, and correct quenching reduce risk. Complex alloys leave less room for casual process control.
Surface and internal defects need different inspection methods. Magnetic particle inspection is used for surface and near-surface cracks in ferromagnetic steels, while liquid penetrant testing helps reveal surface-breaking flaws on non-magnetic materials. Ultrasonic testing is better for internal voids, inclusions, and lack of consolidation.
Hardness testing confirms heat treatment response, but it does not prove internal soundness. A reliable forged steel inspection plan combines dimensional checks, hardness, macroetch review, UT, and MPI according to service risk.
Defect | Likely Cause | Detection | Prevention |
Lap | Folded oxidized metal | MPI, visual | Improve preform design |
Underfill | Low volume or cold metal | Dimensional check | Correct billet size and heat |
Internal void | Low reduction ratio | UT | Increase forging reduction |
Quench crack | Cooling too severe | MPI, visual | Adjust quench and temper cycle |
Heat checking | Thermal cycling in dies | Surface inspection | Better die steel and cooling |
Forging improves structure, but heat treatment defines final performance. Normalizing refines grain structure and produces a uniform baseline condition. Annealing improves machinability, while quenching and tempering can raise strength and hardness when the alloy supports martensitic transformation.
A part requiring ductility should not be treated like a cutting tool. A wear component that remains too soft may deform in service. The heat treatment route should specify temperature, hold time, cooling medium, tempering range, and acceptance hardness.
Forged Steel Bars may be supplied black, peeled, rough-turned, ground, annealed, normalized, or quenched and tempered. Buyers should define surface condition and dimensional tolerance early because those choices affect price, lead time, and machining yield. Straightness is critical when long bars become shafts or spindles.
A complete purchase specification should include grade, size, heat treatment, testing, and certification. Material test certificates, heat number traceability, hardness results, and ultrasonic reports help prevent disputes after delivery.
Forged Die Steel needs careful finishing because die failure often comes from thermal fatigue, wear, or poor maintenance. Tempering cycles relieve stress after hardening, while nitriding can improve wear resistance and heat-checking resistance. Preheating dies before service reduces thermal shock in hot forging or die casting.
The best die strategy measures cost per produced part, not only steel price per kilogram. Polishing, controlled cooling, and scheduled inspection can extend service life by stopping small cracks before they become production failures.
To forge steel successfully, control the full chain: material selection, heating, deformation, cooling, inspection, and documentation. For simple work, start with a forgiving mild or medium-carbon grade and focus on safe temperature control. For forged steel bars, define size, condition, machining allowance, straightness, and inspection before ordering. For forged die steel, choose the grade around heat checking, wear, impact, repair strategy, and long-term cost per part.
A: Forged steel is steel shaped under compressive force, usually by hammering or pressing while hot, to improve grain flow, strength, toughness, and fatigue resistance.
A: Basic steel can be forged in a controlled workshop with proper training, ventilation, heat protection, and equipment. Critical parts should be made by qualified forging facilities.
A: Mild steel and medium-carbon steel are generally easier to forge because they move more predictably under heat. High-carbon and alloy steels need tighter temperature control.
A: Forged Steel Bars often have better internal soundness and directional grain flow, making them suitable for shafts, rollers, gears, tooling blocks, and heavy-duty machined components.
A: Forged Die Steel is used for hot-work dies, cold-work tools, molds, and impact tooling where wear resistance, toughness, heat checking resistance, and die life matter.
A: Heat treatment controls final hardness, ductility, toughness, and machinability. Normalizing, annealing, or quenching and tempering may be used depending on the steel grade and application.
