How Does Forging Improve Steel Compared To Casting​

Introduction

The real question is not simply “Which process sounds stronger?” Buyers want to know whether forged steel or cast steel will deliver better performance, lower failure risk, easier inspection, and stronger long-term value. Forging shapes a heated solid billet through compressive force, while casting pours molten steel into a mold and lets it solidify.

That difference affects structure, performance, defect risk, design freedom, cost, and application fit. This guide compares metallurgy, reliability, manufacturing practicality, and material selection, including where Forged Steel Bars and Forged Die Steel make sense.



Forging vs Casting in Metallurgical Structure

Solid-State Deformation vs Liquid Solidification: Why the Starting Process Matters

Forging improves steel first at the structural level. A heated steel billet remains solid while a press, hammer, or die applies compressive force, moving the metal into shape without melting it. This solid-state deformation compresses the internal structure and helps create a denser forged steel component.

Casting begins with molten steel. Liquid metal flows into a cavity, then cools from the outside inward. Cooling rate, riser design, section thickness, and pouring control all influence the final microstructure.

The practical difference is control: forging works the steel into a load-bearing form, while casting depends on how well liquid metal fills and freezes.

Directional Grain Flow vs Random Grain Formation: Which Structure Handles Stress Better?

A major reason forged steel performs well is directional grain flow. As the billet is deformed, internal grains are stretched and redirected along the shape of the part. In shafts, rings, hooks, gears, and crankshafts, that grain path can be aligned with the expected load path.

Cast steel forms grains during solidification. Those grains do not follow part geometry in the same controlled way. For low-stress parts, this may be acceptable; for fatigue-critical components, grain orientation becomes a performance advantage.

Recrystallization vs Solidification Shrinkage: How Each Process Changes Steel Internally

During hot forging, deformation and temperature can trigger recrystallization, forming finer and more uniform grains. A refined microstructure supports toughness, predictable heat treatment, and crack resistance. Casting must solve a different problem: liquid steel shrinks as it solidifies, so poor feeding can leave shrinkage cavities, porosity, or segregation zones.

Pro-Tip: Forging is not automatically flawless. Buyers should ask about reduction ratio, billet quality, heat treatment, and inspection level, especially for large Forged Steel Bars or safety-critical forged steel parts.



Forging vs Casting in Mechanical Performance

Tensile Strength and Yield Strength

Mechanical performance is where the comparison becomes commercially important. Forged steel often shows more predictable tensile strength and yield strength because the structure is denser, grain flow is controlled, and many internal voids are reduced during deformation. In load-bearing components, consistency matters as much as peak strength.

Yield strength shows when a part begins to deform permanently; tensile strength shows the maximum stress before failure. Ductility and reduction of area indicate whether the component can deform before breaking.

Cast steel can meet demanding specifications when properly designed, poured, heat treated, and inspected. The concern is section-to-section variation caused by internal discontinuities or uneven solidification. For hooks, crankshafts, lifting parts, and rotating shafts, that risk favors forged steel.

Fatigue Life: Which Process Performs Better Under Repeated Loading?

Many failures do not come from one overload event. They develop after thousands or millions of cycles as vibration, rotation, pressure pulses, or impact grow small cracks. This is why fatigue life strongly favors forged steel.

Fewer internal voids reduce crack initiation sites, and directional grain flow can slow crack propagation when aligned with the main stress path. For gears, axles, connecting rods, oilfield tools, and heavy-duty shafts, the advantage is service reliability, not just strength.

Impact Resistance and Toughness: Which Steel Gives More Warning Before Failure?

Impact resistance is not the same as hardness. A hard part may still crack if it lacks toughness, while a tough part can absorb energy before fracture. Forged steel is common in shock-loaded components because the worked structure can improve fracture resistance.

The most valuable behavior is not only strength. A reliable forged component may visibly deform before complete failure, while a cast component with a hidden defect may crack more suddenly.

Pro-Tip: Do not choose a process by hardness alone. Service temperature, impact load, heat treatment, alloy chemistry, and safety factor should be evaluated together.

Heat Treatment Response: Which Process Gives More Consistent Final Properties?

Heat treatment determines the final behavior of many steel parts. Normalizing can refine structure, annealing can improve machinability, quenching and tempering can raise strength, and stress relieving can reduce distortion. Forging usually provides a more uniform starting structure for these treatments.

Casting can also be heat treated successfully, but segregation and uneven section thickness may create variable hardness. For Forged Die Steel, grades such as H13, D2, P20, and SKD61 depend on hardenability, tempering stability, and thermal fatigue resistance.



Forging vs Casting in Defects, Reliability, and Inspection Risk

Porosity and Shrinkage Cavities: Which Process Has Fewer Hidden Voids?

Casting defects often come from liquid metal behavior. Gas porosity, shrinkage cavities, hot tears, and inclusions can become internal weak points if the mold, pouring system, or feeding design is not controlled. Some defects remain hidden until machining, ultrasonic testing, or service loading.

Forging reduces many void-related risks because compressive force can close small internal cavities and consolidate the steel. Higher density improves reliability in parts that must resist bending, tension, and fatigue, which is why forged steel is preferred where hidden defects are unacceptable.

Forging Defects vs Casting Defects: What Can Still Go Wrong?

A credible comparison must admit that both processes can fail when poorly controlled. Forging defects include laps, seams, bursts, overheating, poor grain flow, decarburization, and hydrogen flakes. Casting defects include porosity, shrinkage, inclusions, misruns, cold shuts, and hot tears.

Neither process is automatically safe without inspection. The difference is the defect profile buyers must control.

Surface Inspection vs Ultrasonic Testing: How Buyers Verify Internal Quality

Surface inspection only confirms what can be seen. Magnetic particle testing can reveal near-surface cracks, while dye penetrant testing finds open surface discontinuities. These methods are useful but limited.

Ultrasonic testing is important for large Forged Steel Bars, blocks, shafts, and thick sections because it can detect internal discontinuities before machining. For expensive components, UT should be performed early.



Forging vs Casting in Design, Cost, and Manufacturing Practicality

Shape Complexity: When Casting Beats Forging

Forging is strong, but casting is often more flexible in shape. Internal cavities, thin walls, complex contours, large hollow bodies, and near-net shapes are easier when molten steel fills a mold. Valve bodies, pump housings, and complex frames often benefit from casting.

Forging works best when the part shape allows metal to flow properly under pressure. Deep pockets, enclosed channels, and intricate geometries may require extensive machining after forging.

Tolerance and Machining: Which Process Needs More Secondary Work?

Forged parts often require machining to achieve final dimensions, surface finish, holes, threads, or tight tolerances. Machining allowance must be planned at quotation stage, especially for bars, blocks, rings, and stepped shafts. Too little allowance causes scrap; too much wastes material and CNC time.

Castings can be closer to final shape, but dimensional variation, draft, shrinkage allowance, and surface quality still require control. A cheaper casting may become expensive if repair welding, inspection, or dimensional correction is needed.

Pro-Tip: Compare finished-part cost, not raw-part cost. Include material, tooling, machining, inspection, heat treatment, scrap risk, and freight.

Tooling Cost vs Production Volume: Which Process Makes Financial Sense?

Forging dies can be expensive, especially for closed-die parts. That cost is easier to justify when volume is high and the part benefits from repeatable strength. Open-die forging is flexible for large custom bars, shafts, rings, and blocks.

Casting patterns can be economical for complex shapes or lower volumes, though high-integrity castings still require strong process control. The best financial choice depends on geometry, quantity, grade, inspection, and failure consequence.

Lifecycle Cost: Why Initial Price Is Not the Full Comparison

A lower purchase price is only one part of the decision. If a cast part requires frequent replacement, extra inspection, or causes unplanned downtime, total cost may exceed a higher-priced forged option. Maintenance labor and lost production can dominate the economics.

Forged steel often creates value when the component is difficult to access, expensive to replace, or dangerous to fail. Casting remains competitive when geometry savings outweigh the extra performance margin.



Forged Steel vs Cast Steel by Application and Material Type

Heavy-Duty Parts: Why Forged Steel Is Common in High-Stress Applications

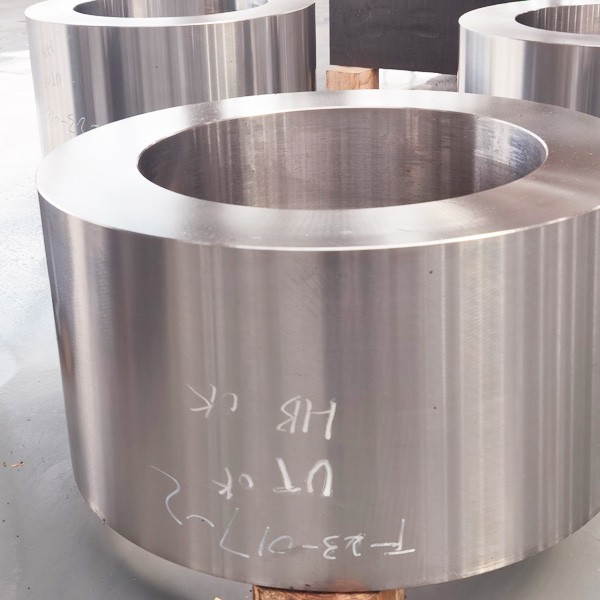

Heavy-duty components often face bending, torsion, impact, vibration, pressure, and wear. Forged steel is widely used for shafts, gears, flanges, rings, hooks, crankshafts, and mining or oilfield parts because these applications reward density, fatigue strength, and toughness.

A cast solution may be acceptable when the load is moderate or the shape is too complex for efficient forging. The deciding factor should be load path and failure consequence, not the supplier’s preferred process.

Forged Steel Bars vs Cast Steel Shapes: What Buyers Should Compare Before Ordering

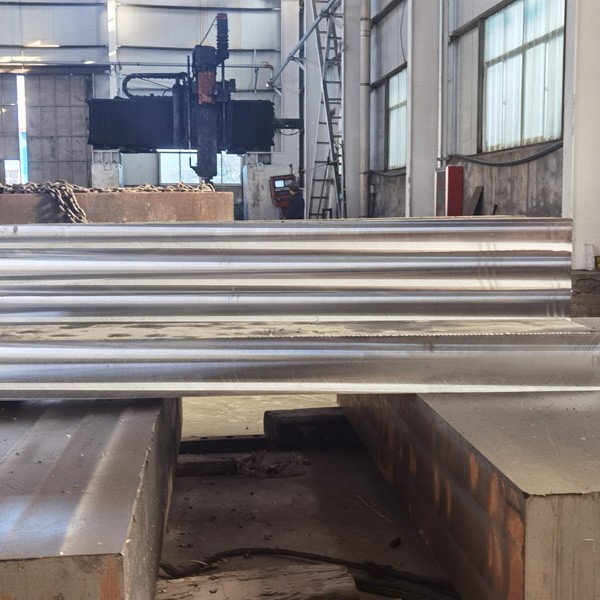

Forged Steel Bars are usually selected when buyers need reliable stock for machining into shafts, rollers, pins, tooling blocks, or structural components. Key purchasing criteria include grade, diameter, length, straightness, surface condition, heat treatment state, UT level, and machining allowance.

Common alloys include 4140, 4340, and 42CrMo4, depending on strength, toughness, and hardenability needs. Buyers should confirm whether the bar is annealed, normalized, or quenched and tempered.

Forged Die Steel vs Cast Tooling Materials: Which Performs Better in Tooling?

Forged Die Steel is used when tooling must resist heat checking, wear, cracking, and repeated thermal cycling. H13 and SKD61 need thermal fatigue resistance, while D2 needs wear resistance and dimensional stability.

Casting may suit tooling bases or non-critical forms, but working die inserts usually demand controlled microstructure and heat treatment. Decarburization control, polishability, hardenability, and tempering response should be reviewed before ordering.

Alloy Flexibility: When Casting May Offer More Composition Freedom

Forging depends heavily on available billet grades. Casting can provide more flexibility for custom alloy compositions, especially when unusual chromium, molybdenum, manganese, or stainless steel chemistry is needed.

That does not make casting universally better. The right process depends on whether the project values alloy freedom, complex geometry, directional strength, or fatigue resistance.



Conclusion

Forging improves steel by changing more than shape. It refines grain flow, increases density, reduces internal void risk, improves fatigue behavior, and makes load-bearing performance more predictable. Those advantages explain why forged steel is selected for shafts, rings, gears, flanges, hooks, heavy equipment parts, and critical industrial components.

Casting remains valuable when the design needs complex geometry, internal cavities, rare alloy flexibility, or lower machining burden. A balanced decision compares load type, geometry, inspection level, production volume, and lifecycle cost.



FAQ

Q: Is forged steel stronger than cast steel?

A: In many load-bearing applications, forged steel is stronger because forging refines grain flow, improves density, and reduces internal voids that can weaken cast parts.

Q: Why does forging improve steel fatigue life?

A: Forging aligns the internal grain structure with the part shape, helping resist crack initiation under vibration, rotation, impact, or repeated loading.

Q: When is casting better than forging?

A: Casting is often better for complex shapes, hollow sections, large housings, or parts where geometry and lower machining needs matter more than directional strength.

Q: Are Forged Steel Bars better than cast steel shapes?

A: Forged Steel Bars are preferred when buyers need reliable stock for shafts, rollers, pins, or machined components requiring strength, toughness, and internal soundness.

Q: Why is Forged Die Steel used for tooling?

A: Forged Die Steel is used because tooling often needs controlled grain structure, wear resistance, toughness, and stable heat treatment response under repeated pressure or temperature changes.

Q: Does forged steel always cost more than cast steel?

A: Forged steel may cost more upfront, but it can reduce lifecycle cost when fewer failures, longer service life, and lower downtime are critical.
