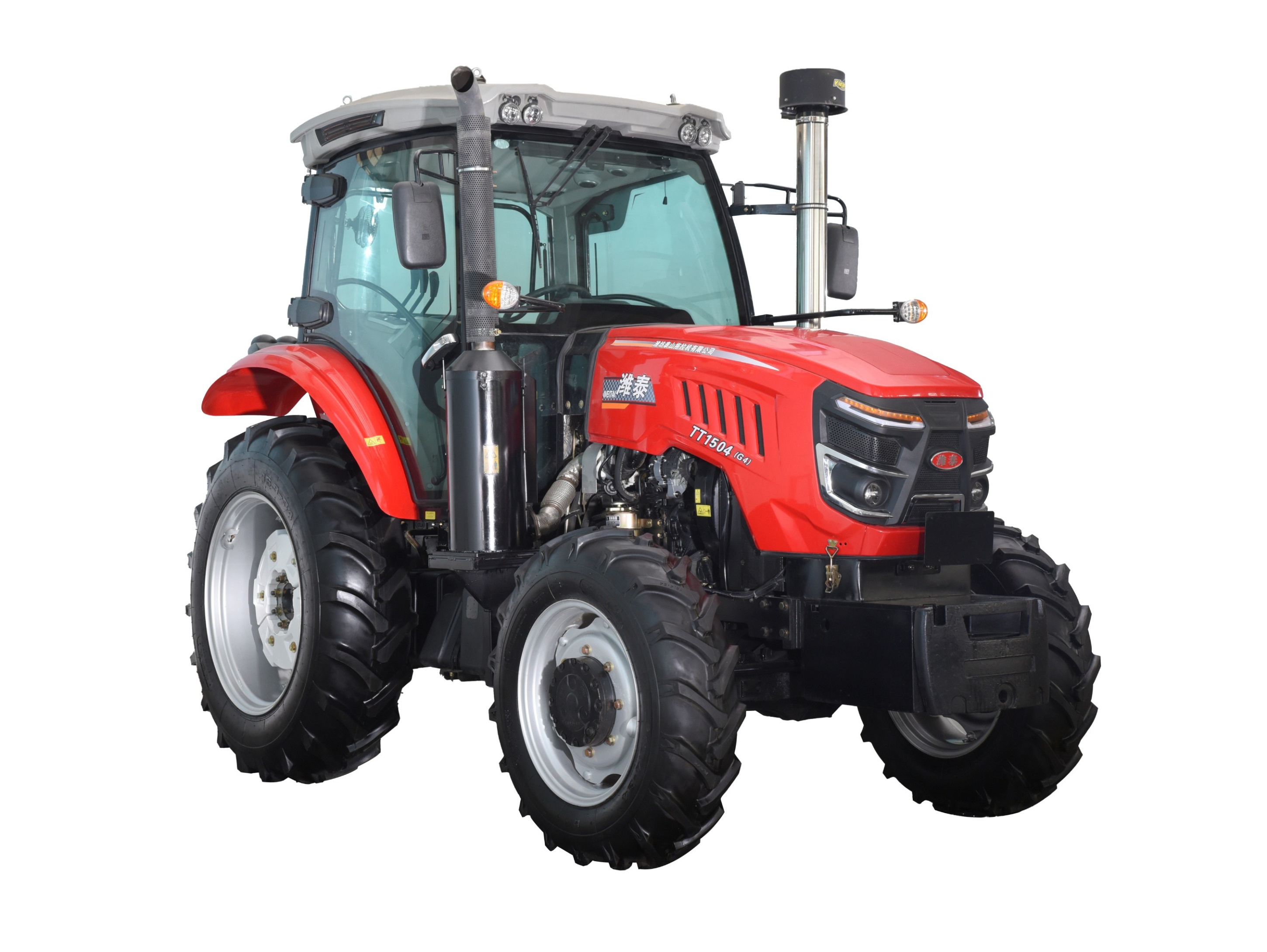

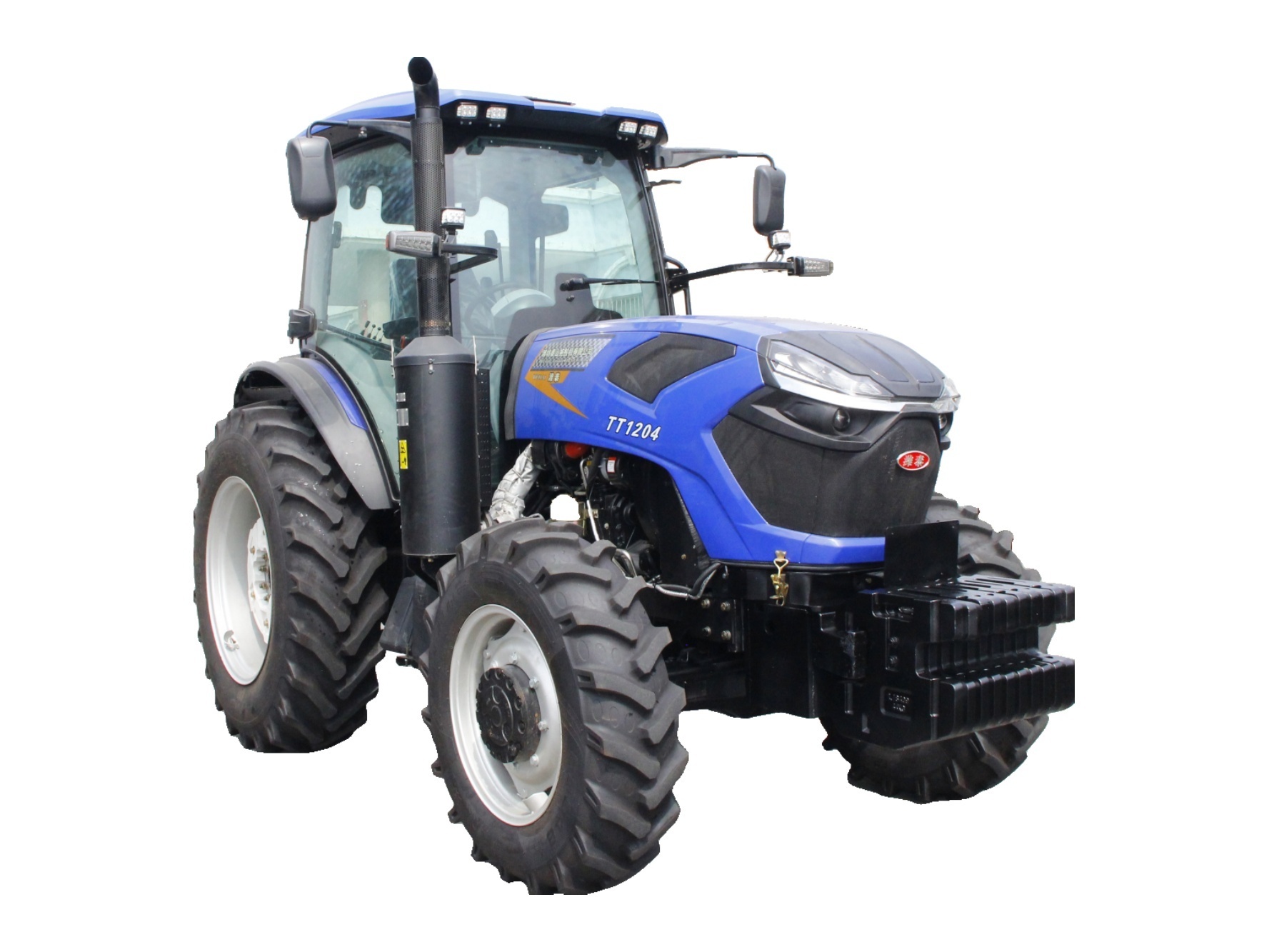

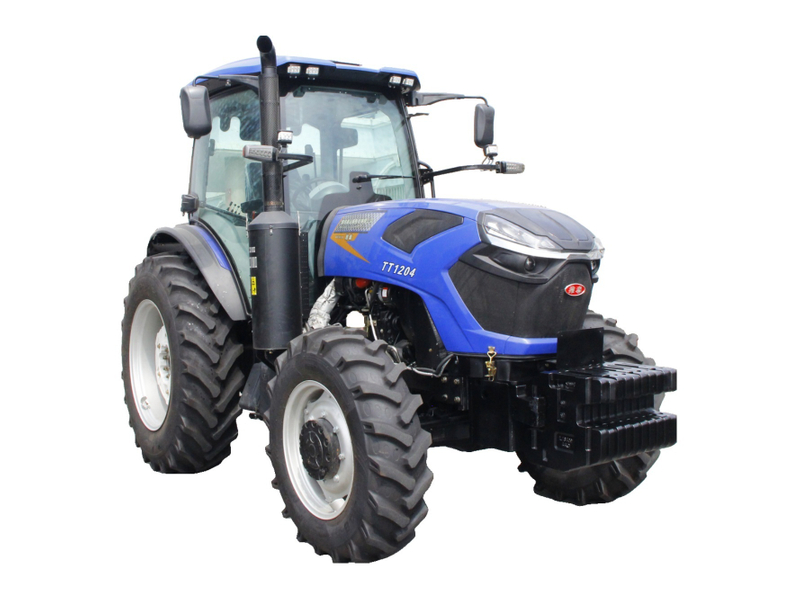

120~160HP WHEELED TRACTOR

Introduction

The 120~160 HP Wheeled Tractor is a high-performance, multi-purpose agricultural machine tailored for medium to large-scale farming operations. It perfectly balances power, efficiency and operability, integrating advanced engine technology, reliable transmission system and humanized design. Suitable for professional farmers, agricultural cooperatives and medium-sized planting bases, this tractor can efficiently complete plowing, harrowing, sowing, fertilizing, harvesting and transportation tasks. It not only improves operation efficiency and reduces labor intensity, but also adapts to various complex farmland conditions, becoming a reliable helper for modern agricultural production. With optional intelligent upgrades and flexible implement matching, it can meet the diverse needs of different planting scenarios and crop types.

Core Advantages

1. Efficient & Energy-Saving Engine

English: Equipped with 4-cylinder or 6-cylinder high-pressure common rail turbocharged intercooled engine (optional), the tractor has a rated horsepower ranging from 120HP to 160HP, with a maximum engine horsepower of up to 175HP. Adopting advanced fuel injection technology and electronic control system, it not only ensures stable and strong power output and high torque reserve (up to 38%), but also achieves excellent fuel economy, with a fuel consumption of ≤230g/kw·h under rated power. It meets the latest national IV emission standards, with an intelligent after-treatment system that can actively regenerate without affecting normal operation, realizing environmental protection and energy saving. The reversible fan design effectively improves engine cooling performance and keeps the radiator screen clean, ensuring stable operation under long-term medium and heavy load conditions.

2. Reliable & Flexible Transmission System

English: Configured with synchronous shifting transmission or optional power shift transmission, the tractor offers a variety of gear combinations, with standard 12F+12R or 24F+8R gears (optional 16F+8R creeper gear), covering a speed range of 2.0~32.5km/h. It can flexibly adapt to different operation needs, such as low-speed deep plowing, high-speed transportation and precision sowing. The transmission adopts a reinforced structure and synchronous shifting design, which is easy to operate, reduces labor intensity, and has strong bearing capacity. The four-wheel drive system enhances traction and stability, enabling the tractor to easily cope with muddy, sloping and other complex terrains, ensuring smooth operation in both dry and paddy fields.

3. Humanized & Comfortable Operation

English: The fully enclosed cab adopts an ergonomic design, equipped with air conditioning, adjustable shock-absorbing seats, and a user-friendly control panel, providing a comfortable operating environment and reducing driver fatigue during long-term operations. The integrated instrument panel clearly displays key parameters such as engine speed, fuel consumption, and operating status, facilitating real-time monitoring and operation adjustment. The cab has a wide field of view, and the upgraded LED work lights can meet the needs of night operations. The main clutch adopts an air-assisted mechanism, with small pedal force and easy operation. Optional intelligent control functions can further improve operation convenience and precision.

4. Strong Adaptability & Durability

English: The tractor adopts a reinforced frame structure, with a minimum ground clearance of 360~460mm, excellent ridge-crossing performance, and suitable for both dry and paddy field operations. The front and rear wheel tracks are adjustable (front wheel track: 1580~2176mm, rear wheel track: 1700~2395mm), adapting to different crop planting densities and agronomic needs. The large-capacity fuel tank (120~400L, optional auxiliary tank) ensures long continuous operation time without frequent refueling. Key components such as the engine and electrical system adopt waterproof and dustproof design (IP67 protection level for optional motor), effectively extending the service life of the equipment. Front and rear counterweights can be added to enhance the stability of the whole machine during heavy-load operation.

5. Versatile Matching & Wide Application

English: The tractor is compatible with a variety of agricultural implements, including plows, harrows, seeders, fertilizers, harvesters, loaders, etc., realizing multi-functional operations such as plowing, harrowing, sowing, fertilizing, harvesting, and material handling. It is equipped with 3~4 groups of hydraulic output valves, with strong adaptability to implement matching; the three-point hitch has strong lifting capacity (up to 36kN), which can meet the needs of various complex compound operations. The PTO supports multiple speed gears (540/760/1000r/min), compatible with both traditional and high-efficiency agricultural machinery. It is widely used in medium-sized farms, agricultural cooperatives and professional planting bases, suitable for wheat, corn, rice, cotton and other crop planting operations.

Application Scenarios

English: The 120~160 HP Wheeled Tractor is widely used in various medium to large-scale agricultural operations, including but not limited to: dry and paddy field plowing, harrowing, rotary tillage and soil preparation; sowing, fertilizing and intertillage of food crops (wheat, corn, rice) and cash crops (cotton, vegetables); traction and transportation of agricultural implements and materials; material handling with matching loaders; and irrigation and drainage operations in paddy fields. It is especially suitable for medium-sized farms, agricultural cooperatives and professional planting bases, effectively solving the problems of low efficiency and high labor intensity in traditional agricultural operations, and helping users improve planting benefits. It can also adapt to complex terrains such as slopes and muddy fields, meeting the diverse needs of different regions and planting modes.

Tractor selectable colors：
